Step into a more sustainable way of living with the Platin AA Eco-Plus Rainwater Harvesting System, developed by GRAF, a European leader in rainwater solutions. Designed for non-potable uses throughout the home, this system provides an efficient and reliable supply of rainwater for toilet flushing, washing machines, garden irrigation, and general outdoor cleaning.

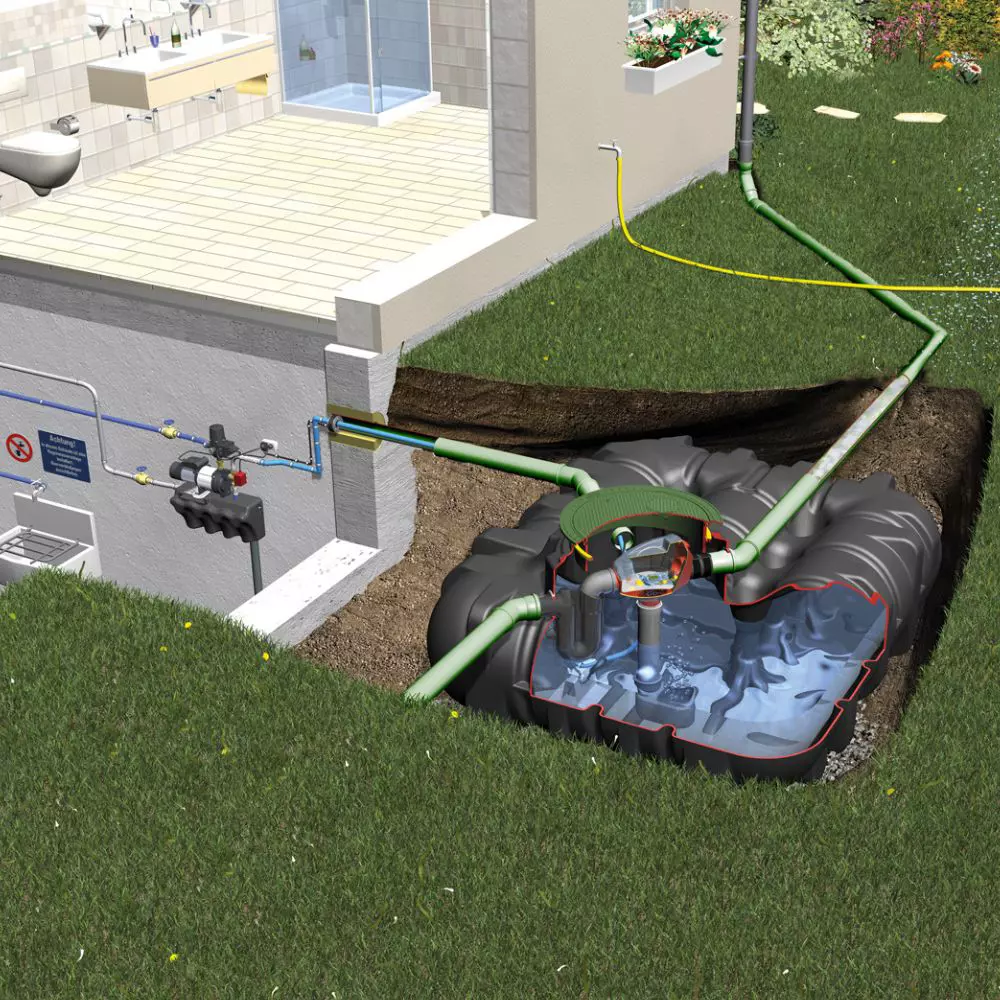

How It Works:

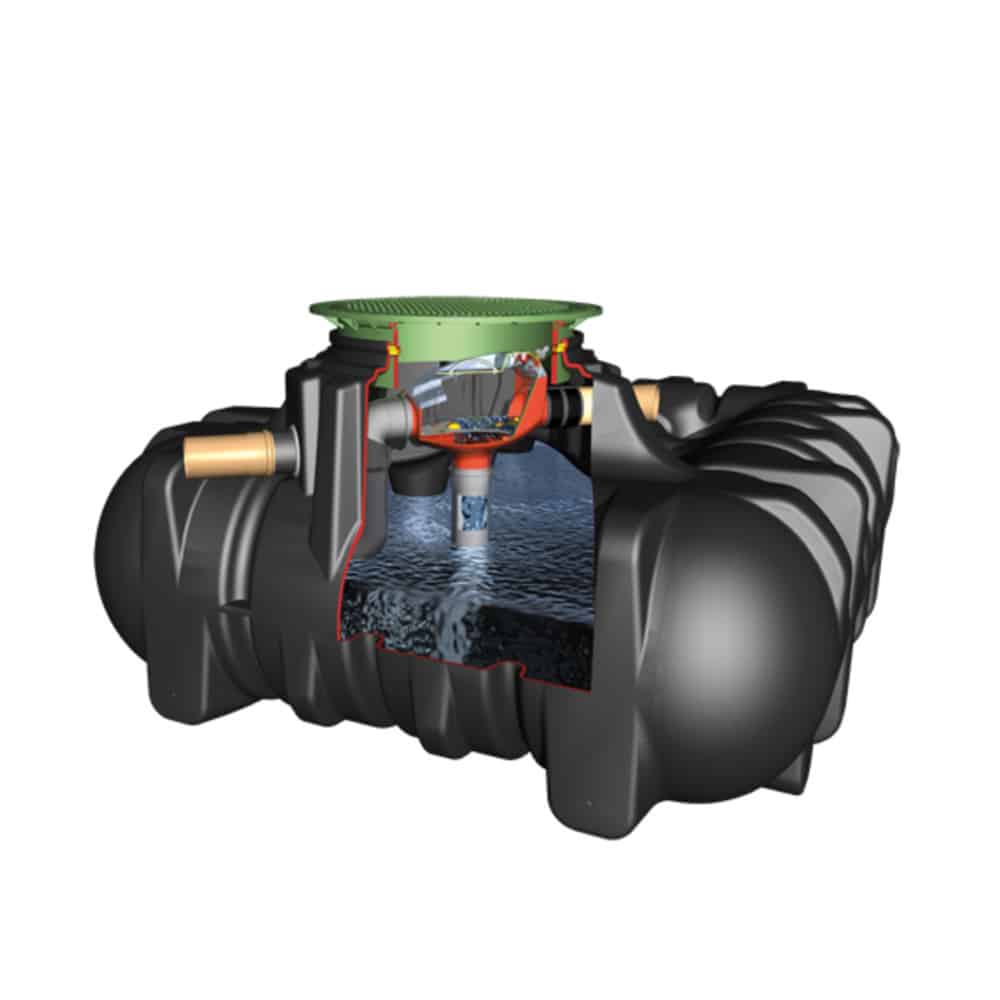

Rainwater Collection – Rainwater is gathered from your roof and channelled through downpipes into the underground Platin tank, designed for shallow installation and ease of access.
Award-Winning Filtration – As the water enters the tank, it passes through GRAF’s high-performance filter, ensuring stored water remains free from leaves and debris.
Smart Water Distribution – An external pump and control unit installed within your property draws water from the tank as needed. A floating intake ensures extraction from the cleanest layer below the water’s surface.
Automatic Mains Backup – If the stored rainwater level becomes low, the system automatically switches to mains water via the integrated cistern beneath the pump unit, ensuring an uninterrupted supply without topping up the main tank.
Optimised Rainwater Storage – By keeping mains water separate from the tank, the system preserves full capacity for collected rainwater, maximising overall efficiency.
Why Choose the Platin AA Eco-Plus System?
-
Sustainable Construction – The Platin tank is manufactured from 100% recycled plastic, supporting responsible material use.
-
Compliant External Pump – The external pump unit incorporates a Family Type AA air gap, providing protection in line with UK water regulations.
-
Simplified Installation – The flat, shallow tank profile and gravel backfill requirement help reduce excavation depth and installation time.
-
Free UK Mainland Delivery – Included as standard for added value.
Supplied with the PLATIN telescopic dome shaft Mini Green and PE pedestrian lid, with the option to upgrade to a vehicle-loading lid for driveways or areas with traffic. The Platin AA Eco-Plus Rainwater Harvesting System offers a reliable, sustainable approach to everyday water use. Images are for illustrative purposes only, components may be updated or substituted with equivalent alternatives.
It's essential to inform your local water authority before starting any work. According to the Water Supply (Water Fittings) Regulations, installing systems like rainwater harvesting is considered a "material change of use" of your premises. This means you must notify your water undertaker in advance and obtain their consent before beginning the installation.
To notify your local water authority, you'll need to provide details such as your name and address, a description of the proposed work, and specifics about the location and intended use of the premises. Many water undertakers have their own notification forms available on their websites. It's important to use these forms, especially when submitting electronically.
By following these steps, you help ensure that your rainwater harvesting system is installed safely and in compliance with regulations, protecting both your water supply and the broader public system. For any further guidance, please click here.
Platin Tank Dimensions & Weights (1500L – 7500L)
Rain Water Flat Tank 1500L Platin | Download
Rain Water Flat Tank 3000L Platin | Download
Rain Water Flat Tank 5000L Platin | Download
Rain Water Flat Tank 7500L Platin | Download
Platin Tank Levels & Invert Levels
Platin Tank Levels | Download
Platin RWH Tank Invert Levels | Download
Mini & Maxi Lid Dimensions
PE Mini Lid (Pedestrian Loading 371010) | Download
PE Maxi Lid (Pedestrian Loading 371011) | Download
Vehicle Loading Maxi Lid (Vehicle Loading 371052) | Download
Extension piece options
Extension Sleeve (371003) | Download
Extension Sleeve (371015) 1000mm | Download
This informative guide covers the following:
- Loading information
- Tank coverage heights
- Excavation dimensions
- Technical & general data
- Installation & Assembly
Read the Guide | Download
Read the Guide (Tank Only) | Download
Please note the following regarding GRAF UK deliveries –
We’re still delivering to our customers safely via our own delivery vehicles & drivers in the main, using external hauliers when required.
This gives us much greater control & flexibility over our deliveries.
All orders are typically delivered within 5-7 working days from receipt of order, however during this time due to UK-wide disruption, some deliveries may take a little longer and we would still aim to deliver within 10 days.
• Delivery lead time is 5-7 working days on all orders, unless otherwise advised.
• Price includes delivery to mainland UK.
• Please check for deliveries into Cornwall, Mid & Northern Scotland & Isles as additional delivery charges may be applicable.
• We cannot currently provide a tracking number for all orders but can accept customer enquiries by phone.
• Off-loading by the customer unless agreed otherwise.
• Tanks are generally strapped to a pallet for fork lift off-load, slings can also be used.
• Please advise if there is restricted access to site or special delivery instructions.
