Platin Garden Comfort XL/XXL Rainwater Harvesting System 10000-25000 Litres

Effortless Installation and Operation: The Platin XL/XXL Garden Comfort is engineered for simplicity. Its installation process is straightforward, requiring minimal tools and effort, which makes it accessible even to those with no prior experience in rainwater harvesting. Once set up, the system operates seamlessly, automating the water delivery to your garden without needing constant manual intervention.

Automatic Water Activation: At the heart of the Platin system is a pressure-sensitive pump connected to a simple hose socket that automatically activates when it detects a drop in pressure, such as when turning on a garden hose or sprinkler. This intelligent feature ensures that water is only pumped when needed, maximising efficiency and conserving energy.

Subtle and Efficient Design: The system’s lid is flush with the ground, making it discreet and safe for regular garden activities. This design not only preserves the aesthetics of your outdoor space but also eliminates any tripping hazards, making it a perfect fit for gardens where appearance and functionality go hand in hand.

Energy-Efficient Water Management: The Platin XL/XXL Garden Comfort utilises a pressure drop activation system, significantly reducing electricity consumption. This system ensures that the pump only operates when water is needed, reducing unnecessary energy use and helping to lower your utility bills.

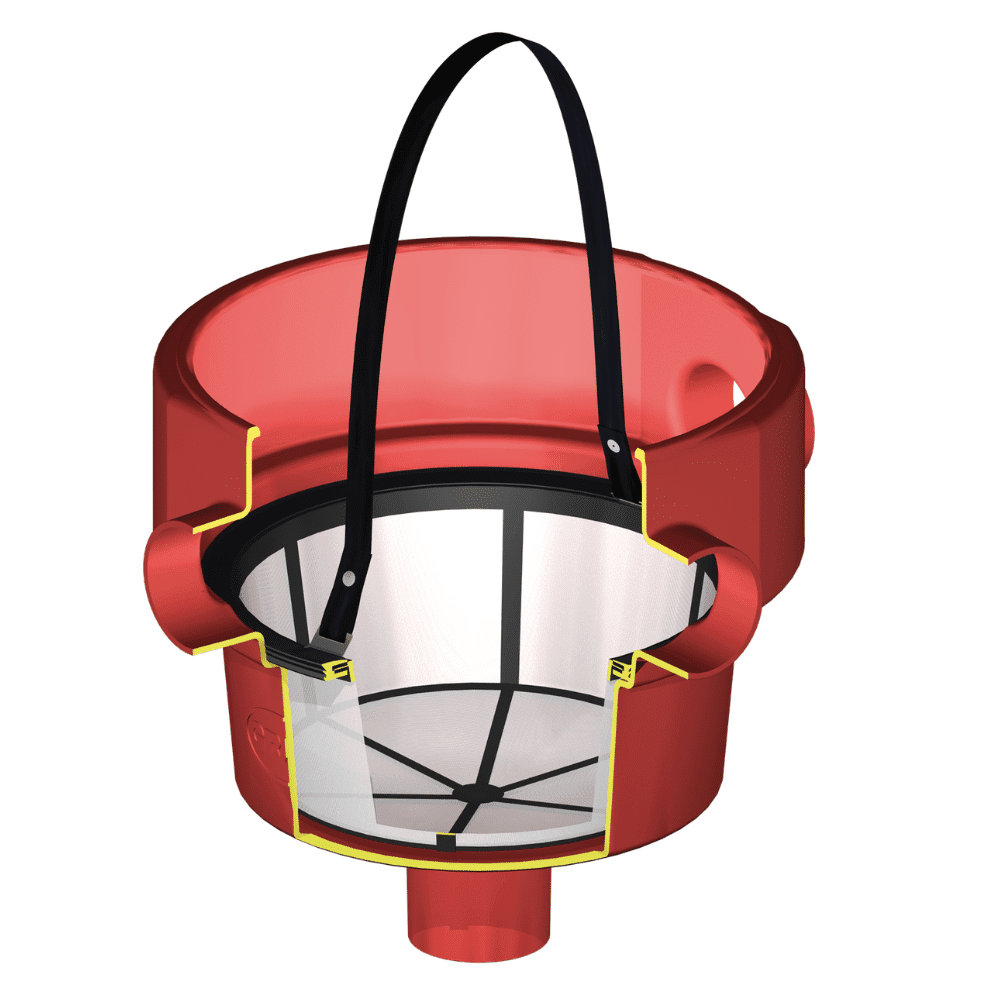

Integrated High-Efficiency Filtration: With integrated filter technology, the Platin XL/XXL Garden Comfort guarantees a 100% water yield. This means that all the collected water is filtered and repurposed, ensuring no resource is wasted. The filter is designed to be easy to maintain and effective. It removes debris and impurities from the rainwater before it reaches your plants, promoting healthier plant growth and reducing the risk of blockages in your watering system.

Ideal for Any Garden Enthusiast: Whether you are a casual gardener or a committed horticulturist, the Platin XL/XXL Garden Comfort package offers a practical and eco-friendly solution to garden watering. It’s particularly beneficial in regions with water use restrictions or for anyone looking to reduce their environmental impact while keeping their garden in top condition.

Choose the Platin XL/XXL Garden Comfort rainwater harvesting system for a more innovative, sustainable way to maintain your garden. It’s easy to install, operates efficiently, and integrates smoothly into any garden setup, making it the perfect addition to your green living space.

Supplied by Graf

Platin Shallow Dig complete package Garden Comfort 10000-25000 Litres comprising of;

• PLATIN XL/XXL Shallow Dig tank 10,000 – 25,000 litres
• PLATIN telescopic dome shaft Mini green, with PE-lid, for pedestrian loading/or vehicle loading, an option with vehicle loading lids.
• PLATIN Maxi tank dome, DN150 pipe connections
• Platin Tank dome plug
• PLATIN XL/XXL Filter package 2 Universal filter 3 XL internal – DN150
• Pump package Garden Comfort
• 25m roll of rainwater harvesting b/g pipe, (25 mm, with fittings)
• Filter (Filter package 2 Universal filter 3 XL internal – DN150 supplied in accordance with the type of tank)
• Submersible pump with floating water intake
• Internal hose connection box
• External hose connection box
• NB. 10,000L & 25,000L tanks have two access turrets and are supplied with two Maxi domes with DN150 connections and two lids of the loading you require

Supplied by Others

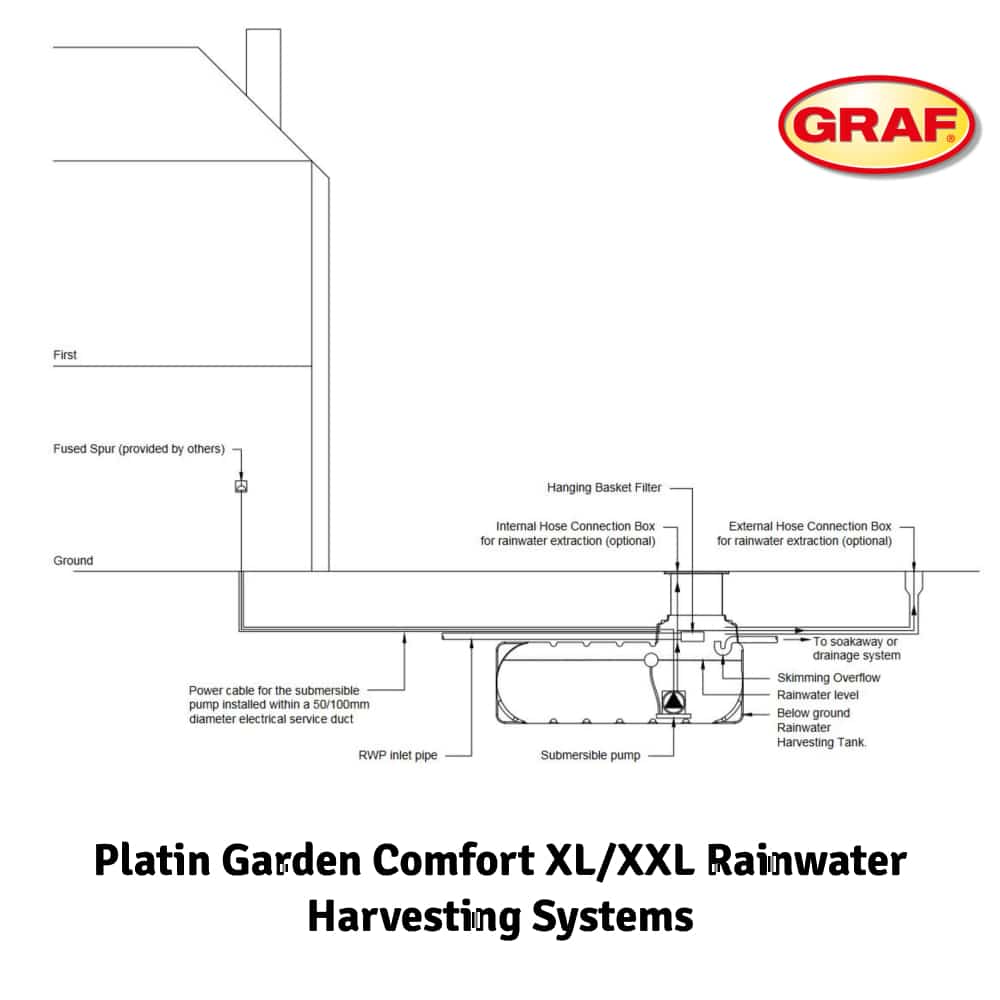

• 100mm diameter duct pipe to contain; float sensor cable, power cable for the pump, also bringing mains water to underground tank as and when required
• 100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
• 100mm diameter pipe for overflow from the tank to mains drainage network or soakaway

Platin Tank Dimensions & Weights (10000L – 25000L)

Platin 10000L Shallow Dig Tank | Download
Platin 15000L Shallow Dig Tank | Download
Platin 20000L Shallow Dig Tank | Download
Platin 25000L Shallow Dig Tank | Download

A New Dimension in Rainwater Management | Download

PLATIN XL Installation and Maintenance Instructions | Download
PLATIN XXL Installation and Maintenance Instructions | Download

Mini & Maxi Lid Dimensions

PE Mini Lid (Pedestrian Loading 371010) | Download

PE Maxi Lid (Pedestrian Loading 371011) | Download

Vehicle Loading Lid (371052) | Download

Extension piece options

Extension Sleeve (371003) | Download

Extension Sleeve (371015) 1000mm | Download

These informative guides cover the following:

• Loading information
• Tank coverage heights
• Excavation dimensions
• Technical & general data
• Installation & Assembly

PLATIN XL Installation and Maintenance Instructions | Download
PLATIN XXL Installation and Maintenance Instructions | Download

Please note the following regarding Graf UK deliveries –

We’re still delivering to our customers safely via our own delivery vehicles & drivers in the main, using external hauliers when required.

This gives us much greater control & flexibility over our deliveries.

All orders are typically delivered within 5-7 working days from receipt of order, however during this time due to UK-wide disruption, some deliveries may take a little longer and we would still aim to deliver within 10 days.

• Delivery lead time is 5-7 working days on all orders, unless otherwise advised.
• Price includes delivery to mainland UK.
• Please check for deliveries into Cornwall, Mid & Northern Scotland & Isles as additional delivery charges may be applicable.
• We cannot currently provide a tracking number for all orders but can accept customer enquiries by phone.
• Off-loading by the customer unless agreed otherwise.
• Tanks are generally strapped to a pallet for fork lift off-load, slings can also be used.
• Please advise if there is restricted access to site or special delivery instructions.
