Platin Garden Comfort Rainwater Harvesting System 1500-7500 Litres

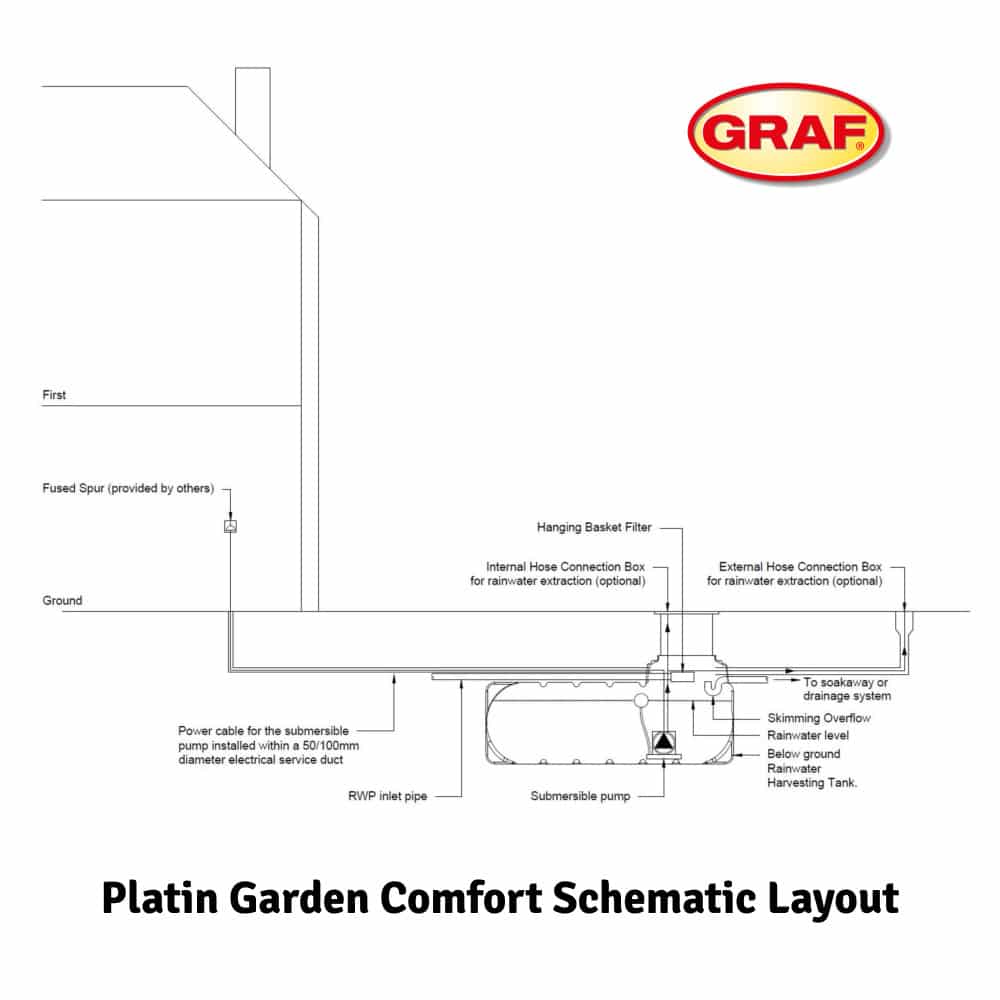

platin garden comfort schematic layout

Platin Garden Comfort Rainwater Harvesting System 1500-7500 Litres

£2,005.50£3,701.64 inc VAT

The Garden Comfort system is designed for irrigation and outside cleaning purposes.

Clear

FREE Delivery by Tuesday, 21 May, 2024.

SKU: N/A

Protecting you

Description

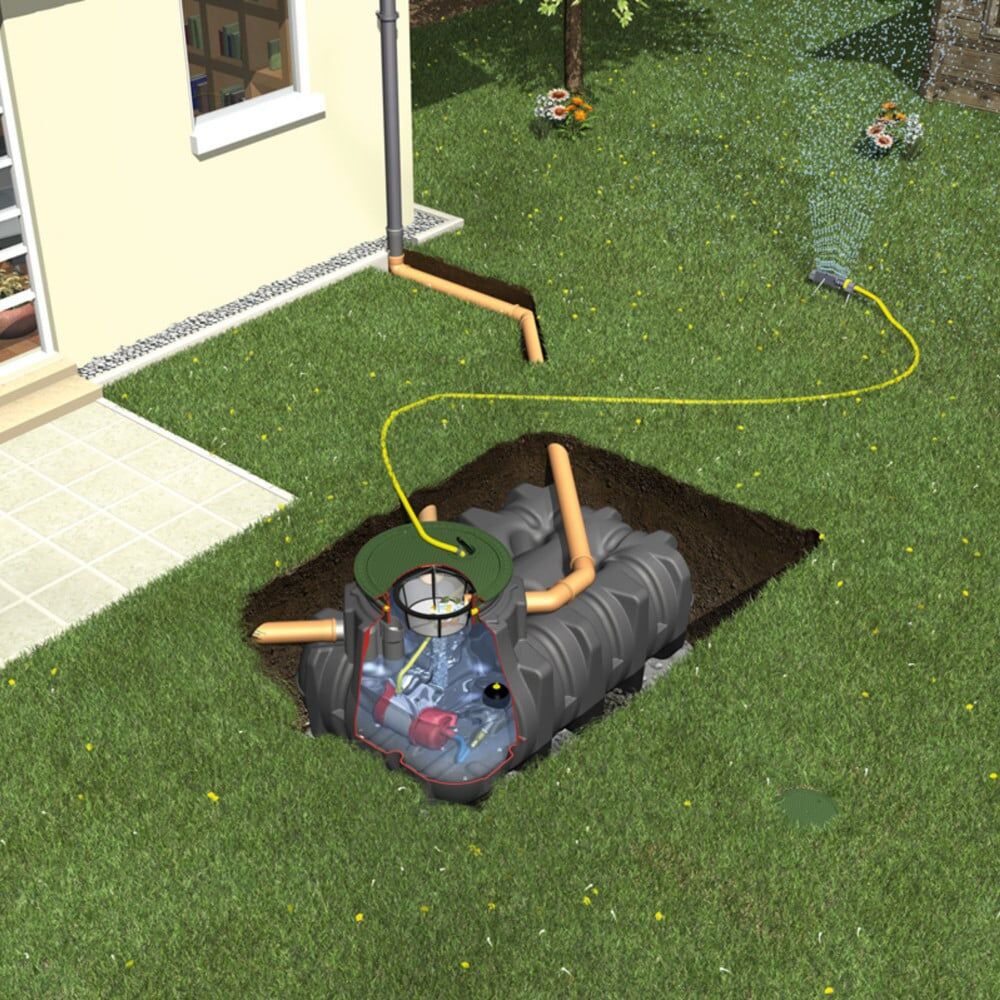

How does the Platin Garden Comfort System work?

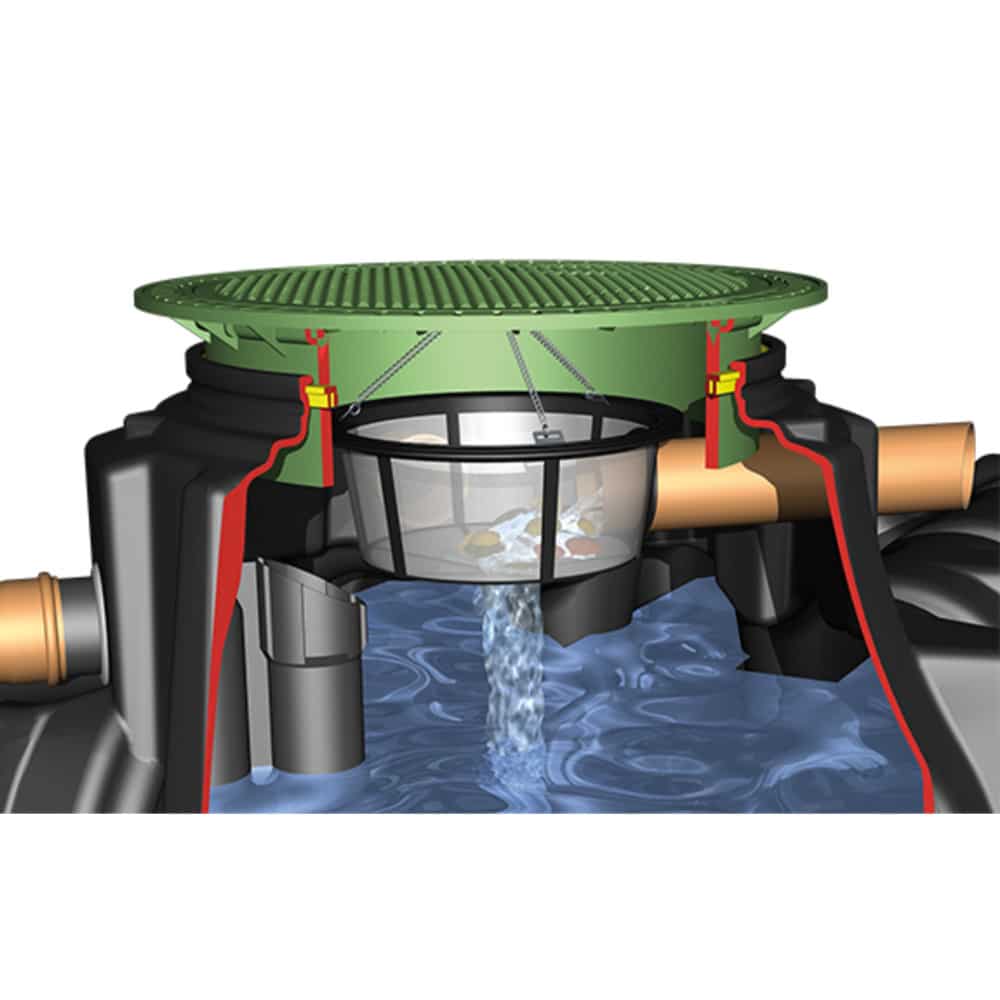

Rainwater is collected from the roof of the property and fed into the underground tank via the downpipes. On entry to the underground tank, the water passes through a filter to prevent any debris from going into the tank.

There is a pressure-sensitive pump located in the underground tank. When a valve or tap is opened, water will be pumped under pressure until the valve is closed, allowing the system to repressurise and turning the power off to the pump.

Why choose the Platin Garden Comfort Package?

  • Gravel Backfill Innovation: Unlike traditional systems that require costly concrete, our system utilises gravel backfill. This not only makes installation simpler but also saves you an impressive £60 per cubic metre.
  • Versatile Placement with Vehicle Loading Lid: Space constraints? No problem. The vehicle loading lid allows the system to be installed under your driveway, offering flexibility without compromising on functionality.
  • Sustainable Materials for a Greener Future: Committed to the environment, our system features an underground tank made entirely from 100% recycled plastic, aligning with your eco-conscious values.
  • European Market Leader Quality: When you choose Platin, you’re opting for a product trusted and favoured across Europe for its reliability and effectiveness in rainwater harvesting.
  • Seamless UK Delivery and Installation: We ensure a smooth journey from purchase to installation with free UK mainland delivery.

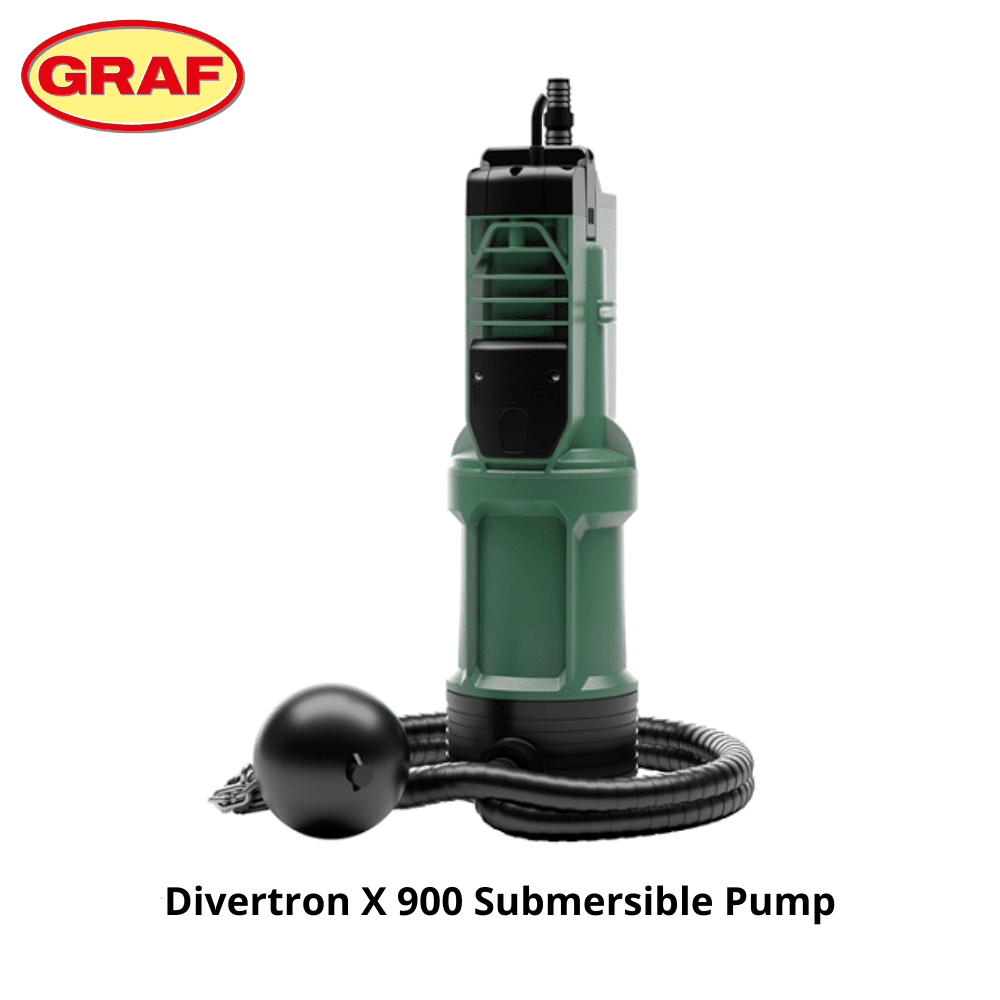

  • Smart Water Management: The included automatic submersible pump is engineered for efficiency. With features like automatic restart and dry-run protection, it intelligently manages water usage, ensuring longevity and reducing maintenance.

Images are for illustrative purposes only; there is a possibility that certain products may have been upgraded or replaced with equivalent alternatives.

What’s included

Supplied by GRAF

Platin Shallow Dig complete package Garden Comfort 1500-7500 Litres, comprising of:

  • PLATIN Shallow Dig tank 1500-7500 litres, with dome & sealing set DN 100
  • PLATIN telescopic dome shaft Mini green, with PE-lid, for pedestrian loading/or vehicle loading
  • PLATIN Filter package 2 Garden/inflow stilling system/overflow siphon/Spannfix – DN 100
  • Pump package Garden Comfort Platin
  • 25m roll of rainwater harvesting b/g pipe, (25 mm, with fittings)
  • Internal hose connection box
  • External hose connection box

Supplied by Others

  • 100mm diameter duct pipe to contain; power cable for pump
  • 100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
  • 100mm diameter pipe for overflow from the tank to mains drainage network or soakaway

System Benefits

  • Simple & quick to install
  • Submersible pump supplies harvested rainwater on demand to external taps, internal and external hose connection boxes
  • Water can be extracted using an internal and/or external hose connection box for standard irrigation purposes

Product Dimensions, Levels & Weights

Platin Tank Dimensions & Weights (1500L – 7500L)

Rain Water Flat Tank 1500L Platin | Download
Rain Water Flat Tank 3000L Platin | Download
Rain Water Flat Tank 5000L Platin | Download
Rain Water Flat Tank 7500L Platin | Download

Platin Tank Levels & Invert Levels

Platin Tank Levels | Download

Platin RWH Tank Invert Levels | Download

Mini & Maxi Lid Dimensions

PE Mini Lid (Pedestrian Loading 371010) | Download

PE Maxi Lid (Pedestrian Loading 371011) | Download

Vehicle Loading Lid (371052) | Download

Extension piece options


Extension Sleeve (371003) | Download


Extension Sleeve (371015) 1000mm | Download

Downloads

Brochures

GRAF Platin RWH Brochure (UK Edition) | Download

Data Sheets

Platin Garden Comfort Package | Download

Schematics

Platin Garden Comfort Schematic Layout | Download

Installation & Commissioning

This informative guide covers the following:

  • Loading information
  • Tank coverage heights
  • Excavation dimensions
  • Technical & general data
  • Installation & Assembly

Read the Guide | Download
Read the Guide (Tank Only) | Download

Service Provider Support

Graf UK has a national service provider network of contractors who can offer various services including the installation of our tank systems.

Coming Soon: New UK map with the service provider/installer contact details.

Delivery Information

Please note the following regarding Graf UK deliveries

We’re still delivering to our customers safely via our own delivery vehicles & drivers in the main, using external hauliers when required.



This gives us much greater control & flexibility over our deliveries.



All orders are typically delivered within 5-7 working days from receipt of order, however during this time due to UK-wide disruption, some deliveries may take a little longer and we would still aim to deliver within 10 days.



• Delivery lead time is 5-7 working days on all orders, unless otherwise advised.
• Price includes delivery to mainland UK.
• Please check for deliveries into Cornwall, Mid & Northern Scotland & Isles as additional delivery charges may be applicable.
• We cannot currently provide a tracking number for all orders but can accept customer enquiries by phone.
• Off-loading by the customer unless agreed otherwise.
• Tanks are generally strapped to a pallet for fork lift off-load, slings can also be used.
• Please advise if there is restricted access to site or special delivery instructions.
