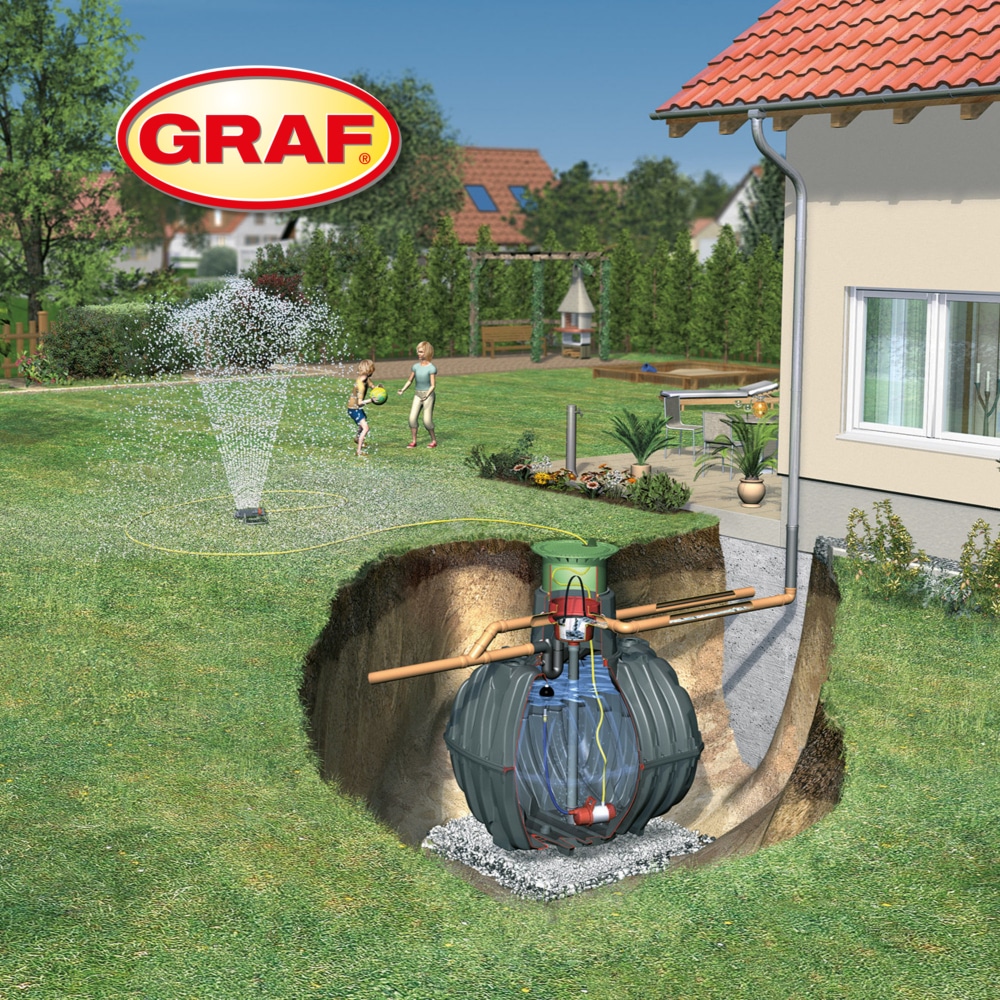

Carat Garden Comfort XL/XXL Rainwater Harvesting System 8500-26000 Litres

Effortless Installation and Operation: The Carat XL/XXL Garden Comfort is engineered for simplicity, making installation and usage straightforward for homeowners. With clear instructions and user-friendly components, you can get your system up and running quickly without needing professional assistance.

Automatic Water Activation: Equipped with a pressure-sensitive pump and a simple hose connection socket, this rainwater harvesting tank ensures water is easily accessible when needed. The system automatically activates water flow upon sensing a pressure drop when a tap or hose is turned on, providing hassle-free irrigation for your garden.

Subtle Design: The flush-to-ground lid preserves the aesthetics of your landscape and provides unhindered access to the tank for maintenance or inspection. This discreet design means you can enjoy the benefits of rainwater harvesting without compromising your garden’s appearance.

Energy-Efficient: To reduce electricity use, the Carat XL/XXL Garden Comfort uses a pressure drop activation system that only consumes power when necessary. This intelligent feature lowers energy bills and the environmental impact of maintaining your garden.

Advanced Filtration Technology: The system incorporates integrated filter technology to ensure 100% water yield, meaning every drop collected can be used. This efficiency makes this system economically viable and environmentally friendly.

Choose the Carat XL/XXL Garden Comfort for a sustainable, easy-to-use, and discreet rainwater harvesting solution that keeps your garden lush while reducing utility costs and water wastage. It is perfect for environmentally conscious gardeners looking to reduce their ecological footprint and make better use of rainwater in the garden instead of using mains water.

Supplied by Graf

CARAT complete package Garden Comfort 8500-26000 litres, comprising of:

• Carat XL/XXL tank 8,500 – 26,000 litres
• Carat telescopic dome shaft Mini green, with PE-lid, for pedestrian loading/or vehicle loading, an option with vehicle loading lids.
• Carat Maxi tank dome, DN150 pipe connections
• Carat XL/XXL Filter package 2 – DN150 connections
• Pump package Garden Comfort
• 25m roll of rainwater harvesting b/g pipe, (25 mm, with fittings)
• Submersible pump with floating water intake
• Internal hose connection box
• External hose connection box
• NB. 22,000L & 26,000L tanks have two access turrets and are supplied with two Maxi domes with DN150 connections and two lids of the loading you require

Supplied by Others

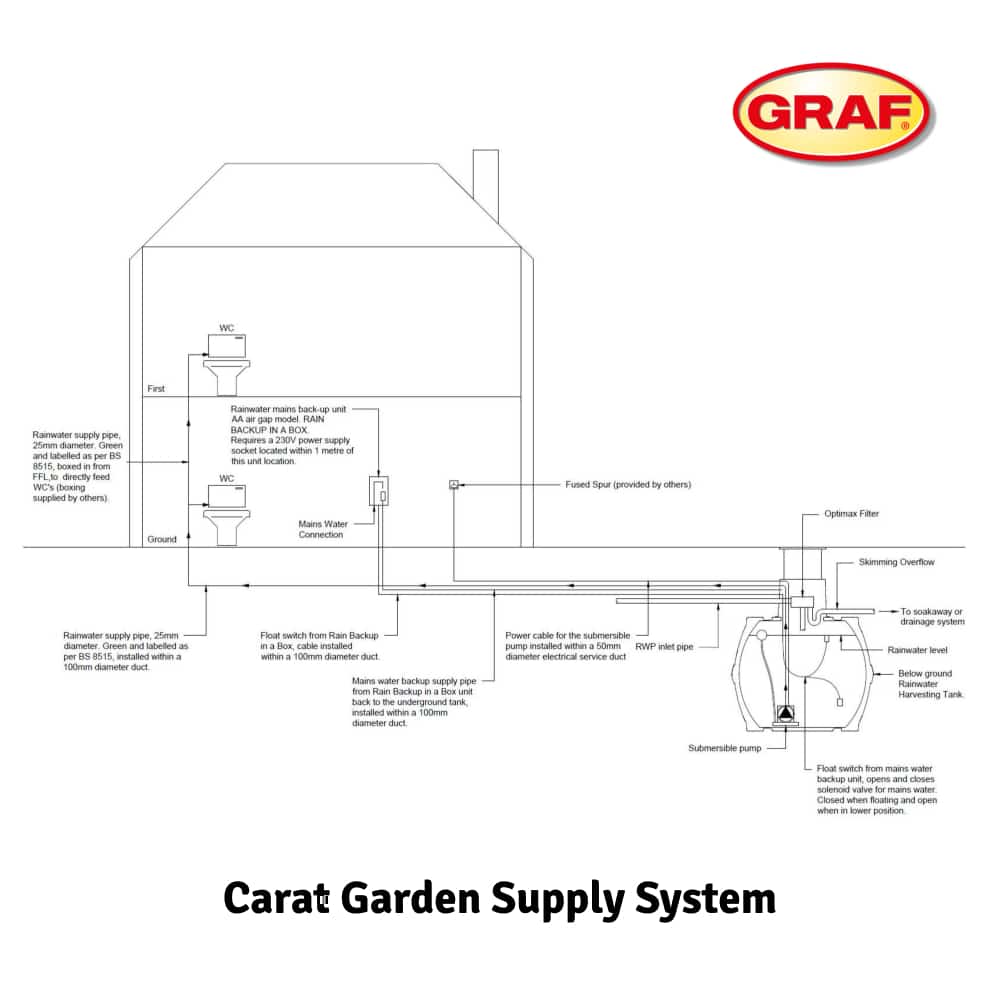

• 150mm diameter duct pipe to contain; float sensor cable, power cable for the pump, also bringing mains water to underground tank as and when required
• 150mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
• 150mm diameter pipe for overflow from the tank to mains drainage network or soakaway

Carat Tank Dimensions & Weights (8500L – 26000L)

Carat 8500L Tank | Download
Carat 10000L Tank | Download
Carat 16000L Tank | Download
Carat 22000L Tank | Download
Carat 26000L Tank | Download

CARAT Garden Comfort XL Installation and maintenance instructions | Download
CARAT Garden Comfort XXL Installation and maintenance instructions | Download

CARAT Tank Levels Mini Dome | Download
CARAT Tank Levels Maxi Dome | Download

Carat XXL a New Dimension | Download

Mini & Maxi Lid Dimensions

PE Mini Lid (Pedestrian Loading 371010) | Download

PE Maxi Lid (Pedestrian Loading 371011) | Download

Vehicle Loading Lid (371052) | Download

Extension piece options

Extension Sleeve (371003) | Download

Extension Sleeve (371015) 1000mm | Download

These informative guides cover the following:

• Loading information
• Tank coverage heights
• Excavation dimensions
• Technical & general data
• Installation & Assembly

CARAT Garden Comfort XL Installation and maintenance instructions | Download
CARAT Garden Comfort XXL Installation and maintenance instructions | Download
