Carat Direct XL/XXL Rainwater Harvesting System 8500-26000 Litres

£4,322.54£11,895.58 inc VAT

The Direct-supply system is designed to support WCs, washing machines, irrigation and outside cleaning purposes.

Clear

FREE Delivery by Tuesday, 04 June, 2024.

SKU: N/A

Protecting you

Description

Upgrade to a smarter, more sustainable way of using water with the Carat XL/XXL Direct rainwater harvesting system. Designed for seamless integration into your property, this system efficiently collects and utilizes rainwater, reducing dependence on mains water and lowering environmental impact.

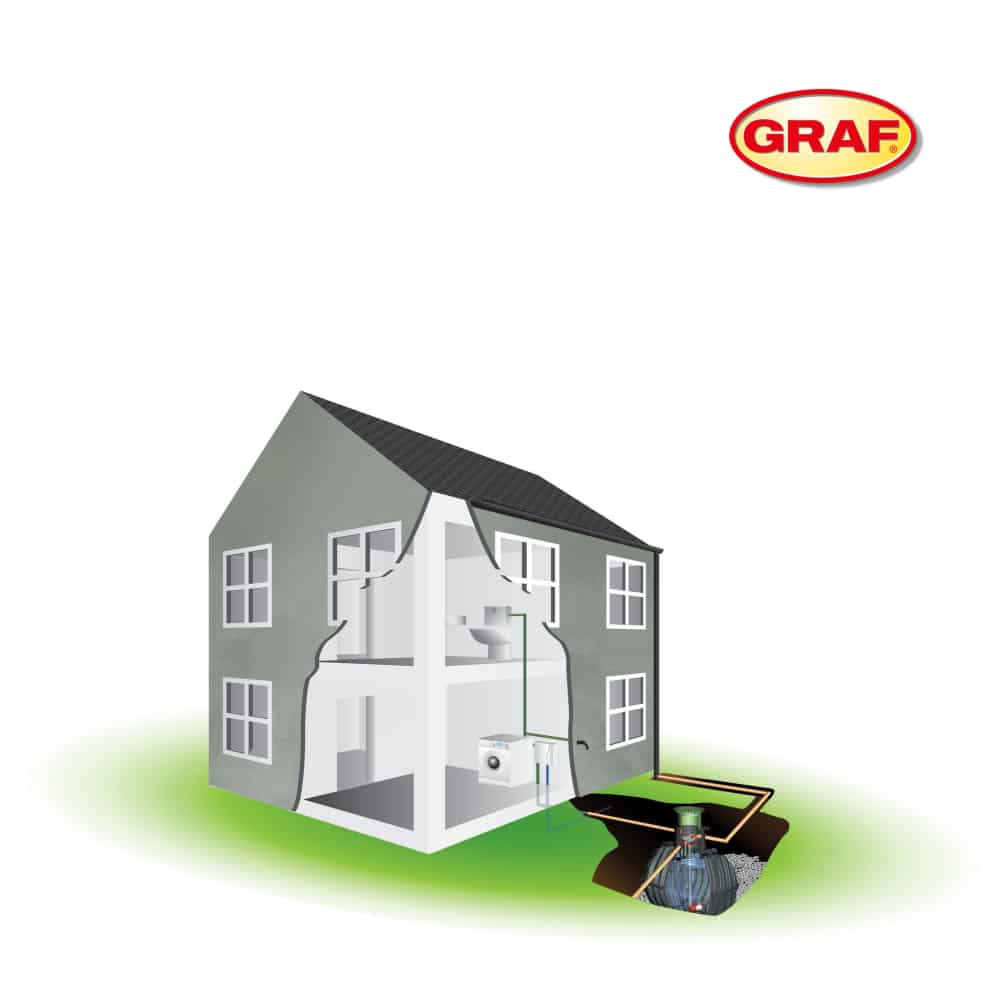

Efficient Rainwater Collection and Usage: Rainwater is collected directly from your roof and channelled through downpipes into an underground tank, where it’s first filtered to remove debris. This ensures only clean rainwater is stored, maintaining the quality and extending the system’s life.

Smart Water Supply Management: A mains water top-up unit within the property is designed to supplement the rainwater in the underground tank when levels run low. Controlled by a float switch, this feature guarantees an adequate water supply without manual intervention.

Cost-Saving Installation: Choose the economical gravel backfill option instead of traditional concrete to reduce installation costs significantly—approximately £60 per cubic metre saved. This makes the Carat XL/XXL Direct not only an environmentally friendly choice but also a cost-effective one.

Versatile Installation Options:  The vehicle loading lid can install the system under driveways, optimizing space usage and maintaining garden aesthetics. This feature allows for flexible tank placement, ensuring it fits perfectly into your property’s layout.

Sustainable and Durable Materials: Constructed from 100% recycled plastic, the underground tank reflects our sustainability commitment without compromising durability. This eco-conscious material choice supports environmental stewardship while providing a robust, long-lasting water storage solution.

Advanced Pump Technology: The system is equipped with an automatic submersible pump that includes auto-restart and dry-run protection. It ensures efficient and reliable operation, maintains pressure, and supplies water effectively, minimizing maintenance and worry.

Choose the Carat XL/XXL Direct for a comprehensive, environmentally friendly rainwater harvesting system that saves money, maximizes space, and provides a reliable water supply for your property.

Images are for illustrative purposes only, there is a possibility that certain products may have been upgraded or replaced with equivalent alternatives.

What’s included

Supplied by Graf

CARAT complete package Direct-Supply 8500-26000 litres, comprising of:

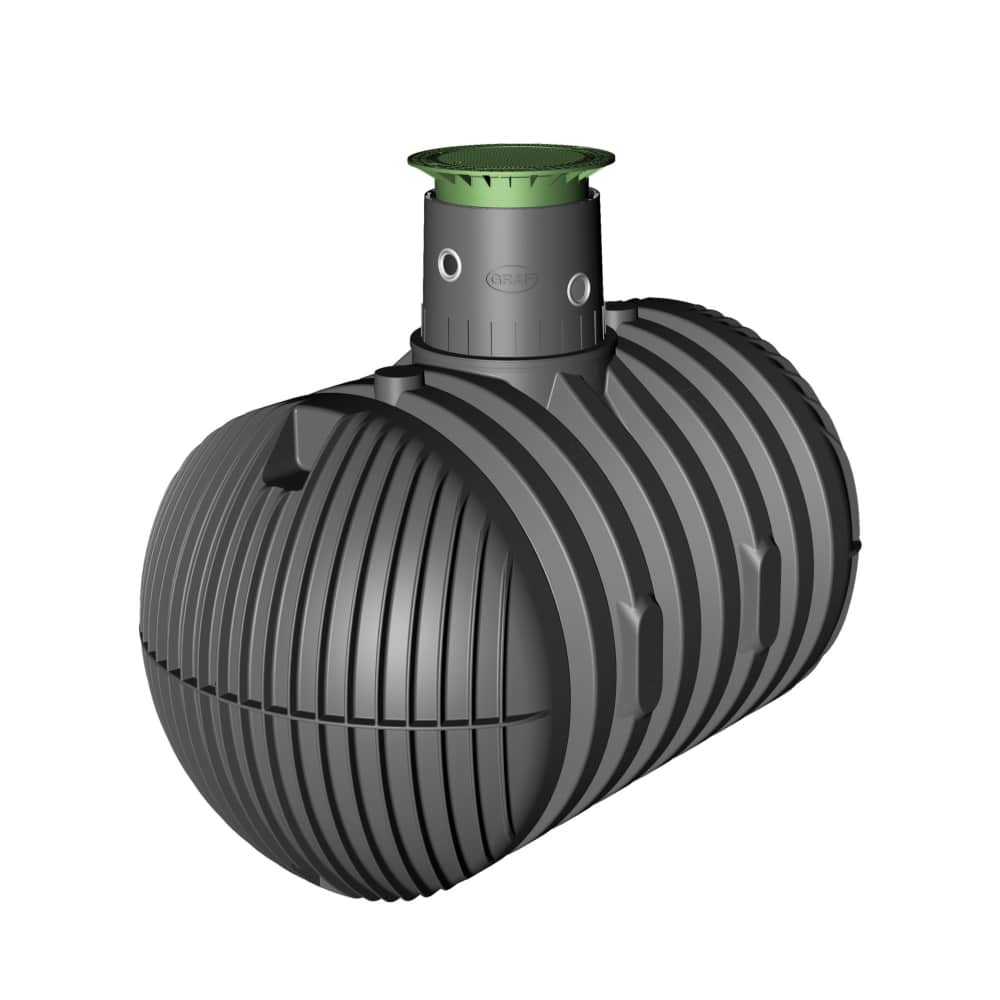

  • Carat XL/XXL tank 8,500 – 26,000 litres
  • Carat telescopic dome shaft Mini green, with PE-lid, for pedestrian loading/or vehicle loading, an option with vehicle loading lids.
  • Carat Maxi tank dome, DN150 pipe connections
  • Carat XL/XXL Filter Package 3 Optimax Pro Filter internal – DN150

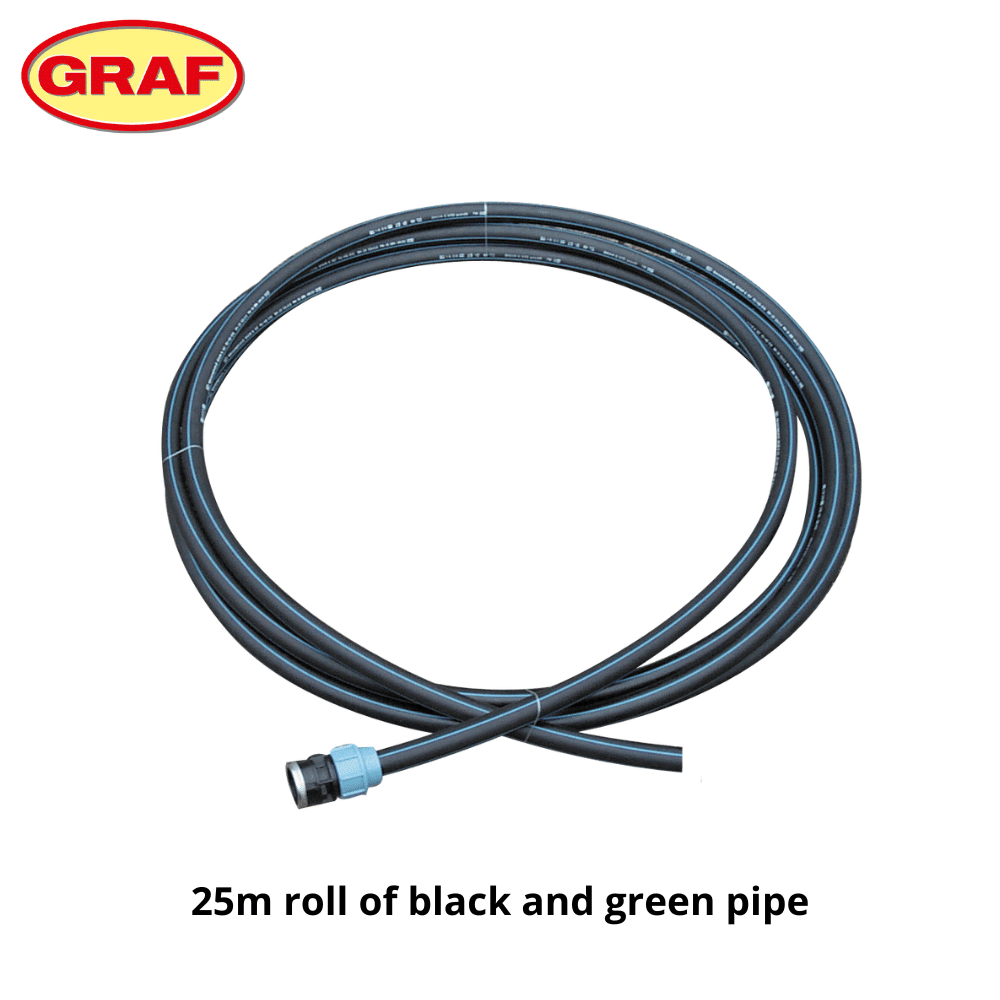

  • 25m roll of rainwater harvesting b/g pipe, (25 mm, with fittings)

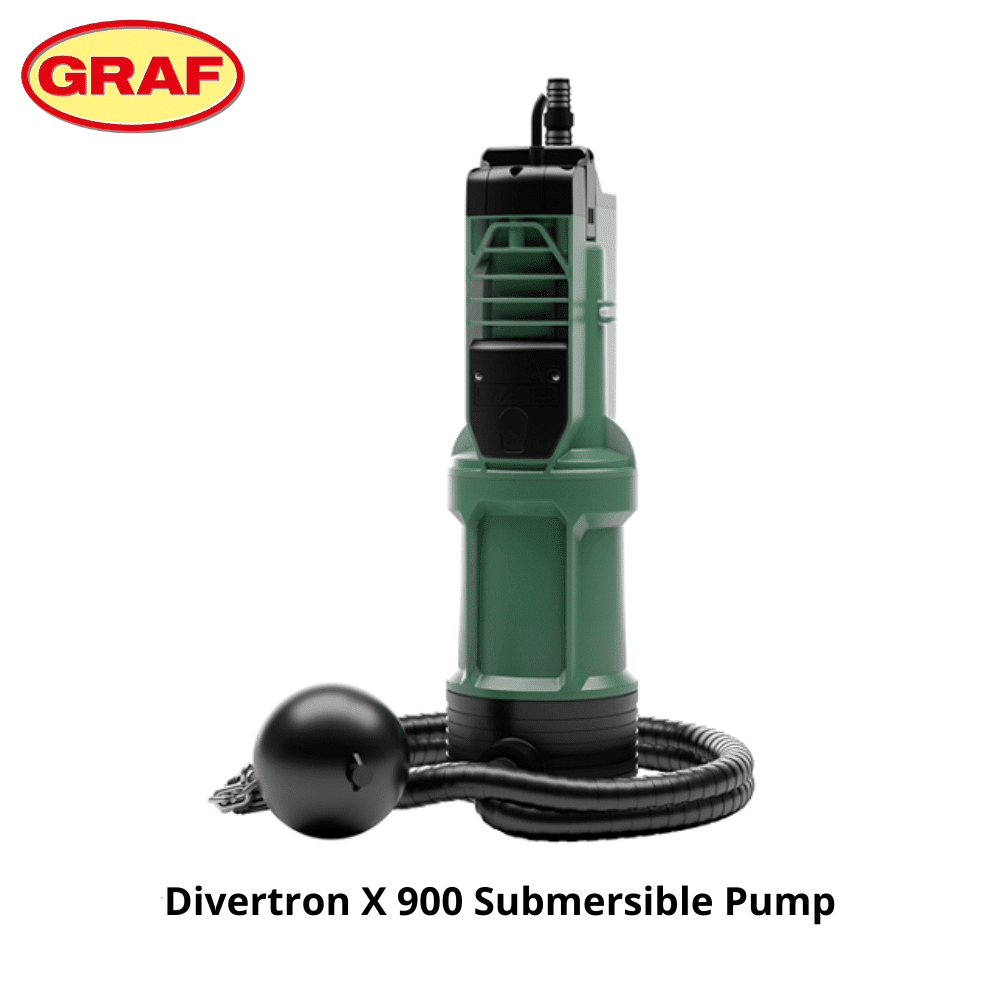

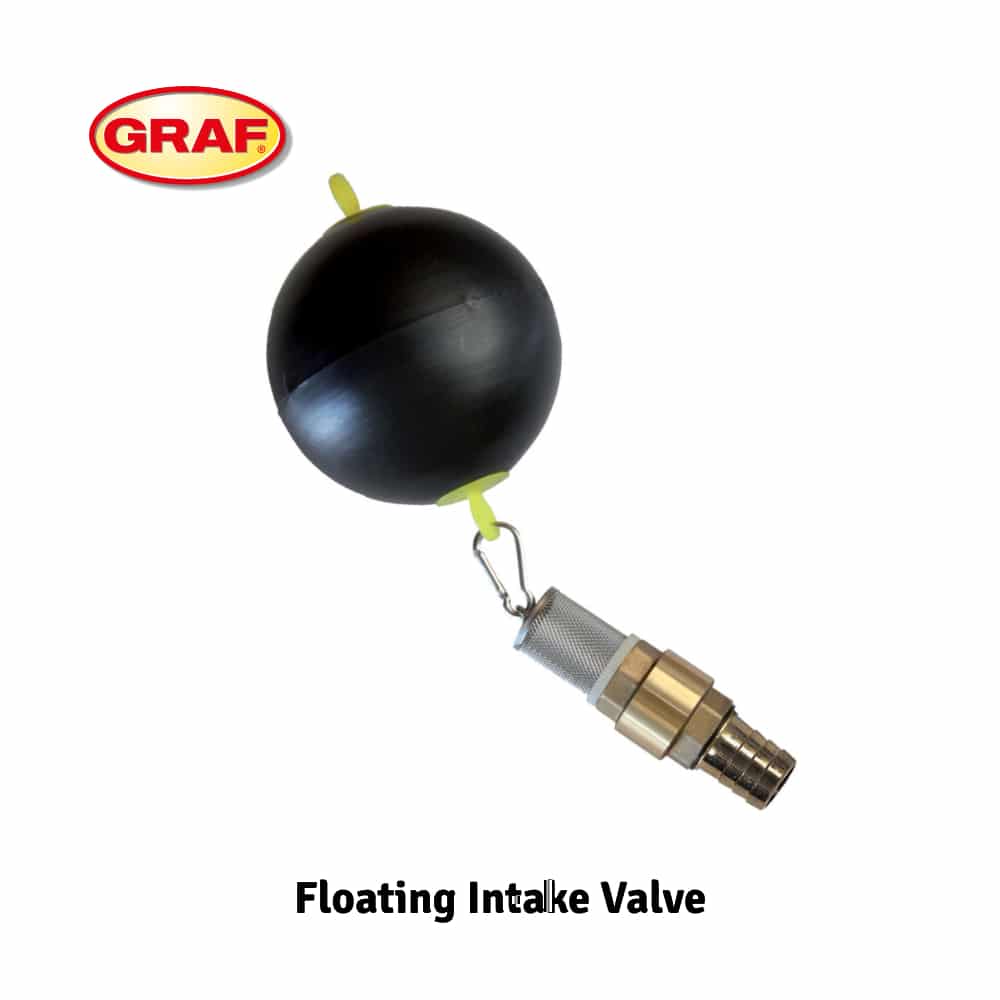

  • Submersible pump with floating water intake

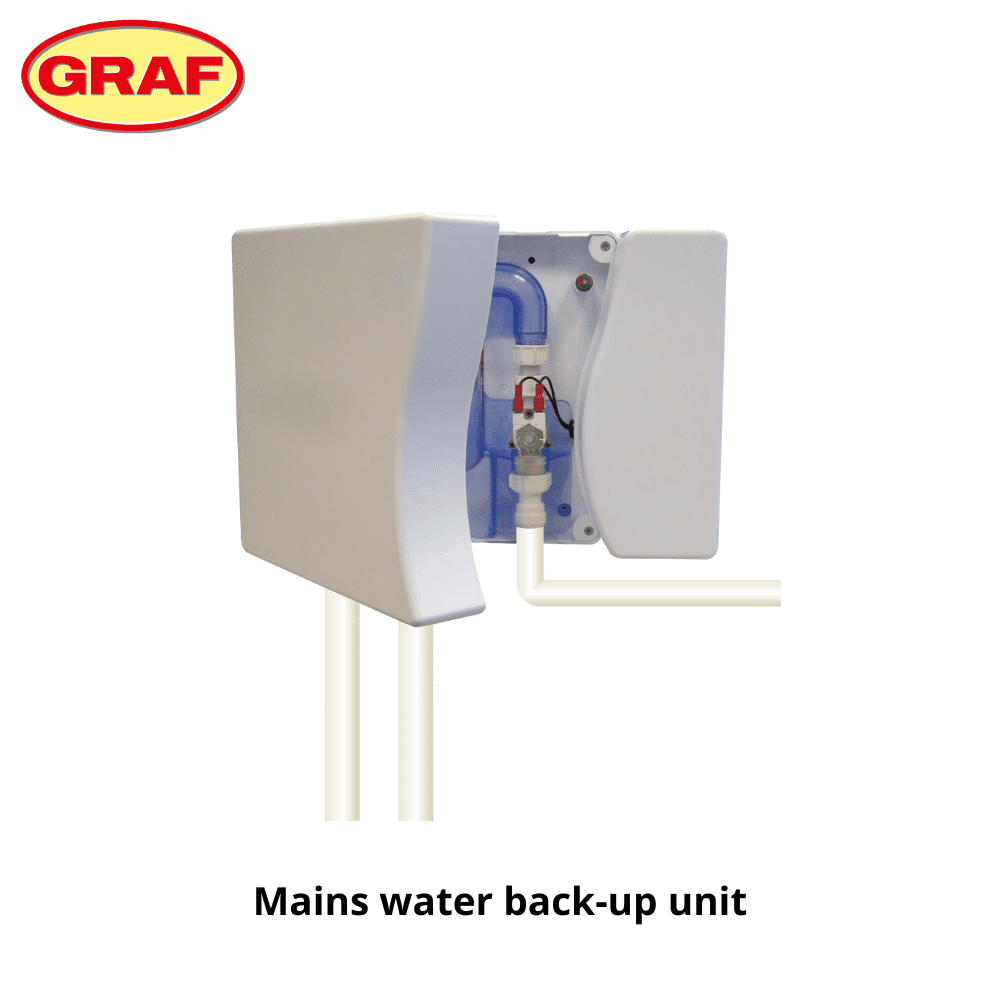

  • Mains water back up unit
  • Float sensor (connected from mains water back up unit to the underground tank)
  • NB. 22,000L & 26,000L tanks have two access turrets and are supplied with two Maxi domes with DN150 connections and two lids of the loading you require

Supplied by Others

  • 150mm diameter duct pipe to contain; float sensor cable, power cable for the pump, also bringing mains water to underground tank as and when required
  • 150mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter)
  • 150mm diameter pipe for overflow from the tank to mains drainage network

System Benefits

Carat Tank Dimensions & Weights (8500L – 26000L)

Carat 8500L Tank | Download
Carat 10000L Tank | Download
Carat 16000L Tank | Download
Carat 22000L Tank | Download
Carat 26000L Tank | Download

CARAT Tank Levels Mini Dome | Download
CARAT Tank Levels Maxi Dome | Download

Carat XXL a New Dimension | Download

Mini & Maxi Lid Dimensions

PE Mini Lid (Pedestrian Loading 371010) | Download

PE Maxi Lid (Pedestrian Loading 371011) | Download

Vehicle Loading Lid (371052) | Download

Extension piece options


Extension Sleeve (371003) | Download


Extension Sleeve (371015) 1000mm | Download

Product Dimensions, Levels & Weights

Carat Tank Dimensions & Weights (8500L – 26000L)

Carat 8500L Tank | Download
Carat 10000L Tank | Download
Carat 16000L Tank | Download
Carat 22000L Tank | Download
Carat 26000L Tank | Download

CARAT Tank Levels Mini Dome | Download
CARAT Tank Levels Maxi Dome | Download

Carat XXL a New Dimension | Download

Mini & Maxi Lid Dimensions

PE Mini Lid (Pedestrian Loading 371010) | Download

PE Maxi Lid (Pedestrian Loading 371011) | Download

Vehicle Loading Lid (371052) | Download

Extension piece options


Extension Sleeve (371003) | Download


Extension Sleeve (371015) 1000mm | Download

Downloads

Schematics

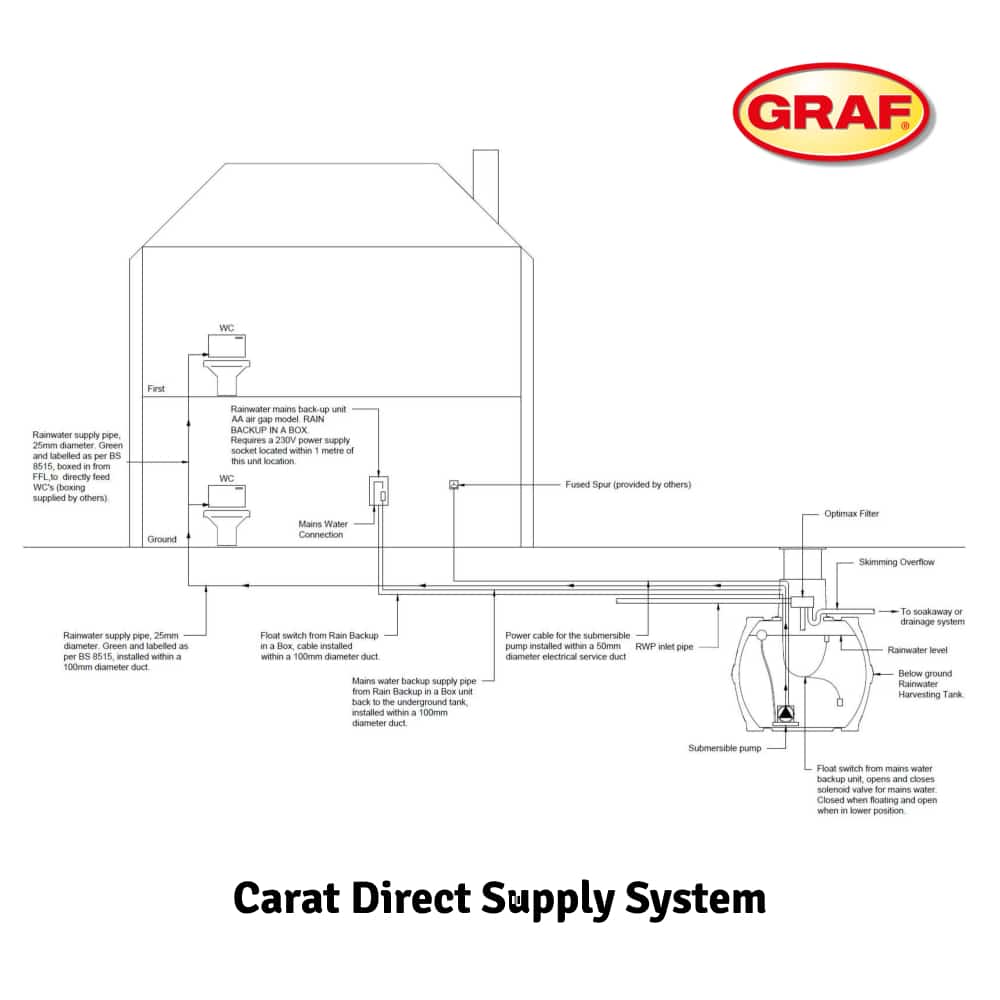

Carat Direct XL / XXL | Download

Brochure

Carat XXL a New Dimension | Download

Installation Instructions

Home Direct System Installation Manual | Download

Installation & Commissioning

These informative guides cover the following:

• Loading information
• Tank coverage heights
• Excavation dimensions
• Technical & general data
• Installation & Assembly

Video

A rainwater harvesting system will cut your home’s demand for drinking water by up to 50% and therefore also protect the environment. But how much time do you have to factor in for operating and maintaining such a system? GRAF rainwater harvesting systems are designed so that only very few of the components need checking. This film shows which components need maintenance and how often. The intelligent components deliver perfectly clear rainwater with minimum maintenance effort, enabling you to save drinking water and time.

Service Provider Support

Graf UK has a national service provider network of contractors who can offer various services including the installation of our tank systems.

Coming Soon: New UK map with the service provider/installer contact details.

Delivery Information

Please note the following regarding Graf UK deliveries:

We’re still delivering to our customers safely via our own delivery vehicles & drivers in the main, using external hauliers when required.

This gives us much greater control & flexibility over our deliveries.
Delivery times stated are from receipt of order/payment & may vary subject to tank size & stock availability.

  • Delivery lead time is 5-15 working days for tanks up to 10,000L in size, subject to stock availability.
  • Delivery lead time is 15-25 working days for tanks above 10,000L in size, subject to stock availability.
    Price includes delivery to mainland UK.
    • Please check for deliveries into Cornwall, Mid & Northern Scotland & Isles as additional delivery charges may be applicable.
    • We cannot currently provide a tracking number for all orders but can accept customer enquiries by phone.
    • Off-loading by the customer unless agreed otherwise
  • Tanks up to 1200L are generally delivered by carrier strapped to a pallet for forklift off-loading.
    Tanks up to 7500L are generally strapped to a pallet for forklift off-loading.
  • Tanks 8500L & above are generally supplied with slings for off-loading.
    Please advise if there is restricted access to the site or special delivery instructions.
