The Ultimate Guide to Rainwater Harvesting: Everything You Need to Know

Water is one of our most precious resources, and as climate patterns shift and populations grow, the need for sustainable water management has never been more critical. Rainwater harvesting is an ancient practice that has gained renewed interest in recent years as an eco-friendly and cost-effective way to conserve water. This comprehensive guide will explore everything you need to know about rainwater harvesting, from its basic concepts to advanced techniques and considerations.

Whether you’re a homeowner looking to reduce your water bill, a farmer seeking to improve irrigation practices, or an environmentalist interested in water conservation, this guide will provide you with valuable insights and practical knowledge to help you understand and implement rainwater harvesting systems.

What is Rainwater Harvesting?

Rainwater harvesting is the process of collecting, filtering, and storing rainwater for later use. This practice has been employed for thousands of years, with evidence of rainwater harvesting systems dating back to ancient civilisations in the Middle East and Asia.

Today, rainwater harvesting is used in both rural and urban settings for various purposes, including:

• Irrigation for gardens
• Flushing toilets
• Washing clothes
• Outdoor cleaning and washing
• Livestock watering
• Industrial processes
• Groundwater recharge

By capturing rainwater that would otherwise be lost to runoff, we can reduce demand on mains water supplies and mitigate the effects of drought and water scarcity.

Benefits of Rainwater Harvesting

Implementing a rainwater harvesting system offers numerous advantages:

1. Water Conservation: Reduces reliance on mains water supplies and helps preserve natural water sources.
2. Cost Savings: Lowers water bills and can provide a free water source for non-potable uses.
3. Environmental Protection: Reduces stormwater runoff, which can carry pollutants into rivers and lakes.
4. Flood Mitigation: Helps manage excess water during heavy rainfall events.
5. Improved Plant Growth: Rainwater is naturally soft and free from chemicals, making it ideal for plants.
6. Energy Savings: Reduces the energy required to treat and pump water from centralised systems.
7. Increased Self-Sufficiency: Provides a backup water supply during emergencies or droughts.
8. Flexibility: Can be implemented on various scales, from small residential systems to large commercial operations.

Types of Rainwater Harvesting Systems

There are several types of rainwater harvesting systems, each suited to different needs and environments:

1. Rooftop Rainwater Harvesting: The most common type for residential and commercial buildings, collecting rainwater from roof surfaces.

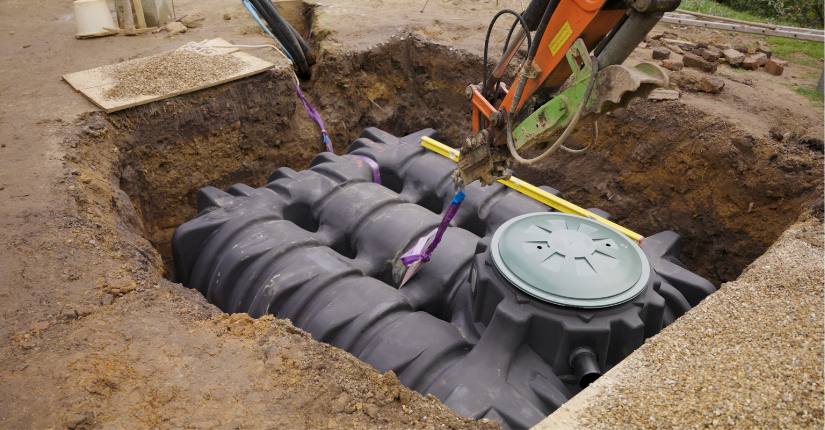

2. Underground Tanks: Store harvested rainwater in underground tanks, saving space and protecting water from sunlight and contamination.
3. Above-Ground Tanks: Visible storage tanks that can be easily accessed and maintained.
4. Rain Gardens: Landscaped areas designed to collect and filter rainwater, allowing it to slowly percolate into the ground.
5. Rainwater Ponds: Large-scale collection systems often used in agricultural settings.
6. Infiltration Systems: Direct rainwater into the ground to recharge aquifers and improve soil moisture.

Components of a Rainwater Harvesting System

A typical rainwater harvesting system consists of several key components:

1. Catchment Area: Usually the roof of a building, where rainwater is collected.
2. Gutters and Downpipes: Channel water from the catchment area to the storage tank.
3. Filters: Remove large leaves, moss and other debris from the collected water.
4. Storage Tank: Holds the collected rainwater for future use.
5. Pump: Moves water from the storage tank to its point of use (if gravity flow is not sufficient).
6. Additional Filtration: Further purifies the water before use, especially important if intended for potable purposes. Typically done using UV filtration.
7. Overflow Pipe: Safely directs excess water away from the system during heavy rainfall.
8. Distribution System: Pipes and fixtures that deliver the harvested rainwater to its intended use.

Planning and Designing Your Rainwater Harvesting System

Effective planning is crucial for a successful rainwater harvesting system. Consider the following steps:

1. Assess Your Needs: Determine how much water you need and for what purposes.
2. Evaluate Your Site: Consider factors like rainfall patterns, catchment area size, and available space for storage.
3. Check Local Regulations: Ensure compliance with local building codes and water use regulations.
4. Choose System Components: Select appropriate materials and equipment based on your needs and budget.
5. Calculate System Capacity: Determine the size of your storage tank based on rainfall data and water requirements. You can use our tank size calculator to do this for you.
6. Design the Layout: Plan the placement of components for optimal efficiency and aesthetics.
7. Consider Professional Help: For complex systems, consult with a rainwater harvesting specialist or engineer.

Installation Process

While professional installation is recommended for larger or more complex systems, here’s a general overview of the installation process:

1. Prepare the Site: Clear the area where the tank and other components will be installed.
2. Install Gutters and Downpipes: Ensure proper slope and sizing to efficiently channel water.
3. Set Up Filtration: Install a filter to prevent any leaves, moss and other debris from entering the tank. Most systems typically have these integrated with the underground tank.
4. Place the Storage Tank: Position the tank on a level, stable surface.
5. Connect Pipes: Install piping to connect gutters, filters, and the storage tank.
6. Install the Pump and Distribution System: Set up the pump and lay pipes for water distribution.
7. Add Final Filtration: Install any additional filtration systems required for your intended water use.
8. Test the System: Run a test to ensure all components are functioning correctly.

Maintenance and Upkeep

Regular maintenance is essential to keep your rainwater harvesting system functioning efficiently:

1. Clean Gutters and Filters: Remove debris regularly to prevent clogging.
2. Inspect the Tank: Check for leaks, cracks, or contamination annually.
3. Clean the Tank: Every 2-3 years, or as needed, to remove sediment buildup.
4. Maintain the Pump: Service the pump according to manufacturer recommendations.
5. Check and Replace Filters: Change or clean filters as specified by the manufacturer.
6. Monitor Water Quality: Regularly test water quality, especially if used for drinking.

Legal Considerations and Regulations

Rainwater harvesting regulations vary widely depending on location. Some key considerations include:

1. Building Codes: Ensure your system complies with local building and plumbing codes.
2. Health Regulations: If using harvested rainwater for drinking, adhere to local health department guidelines.
3. Incentives: Check for available tax credits, rebates, or other incentives for installing a rainwater harvesting system.
4. Permits: Obtain necessary permits before installation, especially for larger systems.

Cost and Return on Investment

The cost of a rainwater harvesting system can vary widely based on size, complexity, and location. Factors to consider include:

1. Initial Investment: Costs for materials, equipment, and installation.
2. Ongoing Expenses: Maintenance, energy for pumping, and occasional repairs.
3. Potential Savings: Reduced water bills if on a meter.
4. Incentives: Factor in any available rebates or tax incentives.
5. Property Value: A well-designed system may increase your property’s value.
6. Long-term Benefits: Consider the environmental and sustainability benefits beyond direct financial returns.

The return on investment period typically ranges from 5 to 15 years, depending on local water prices and system efficiency.

Environmental Impact

Rainwater harvesting offers significant environmental benefits:

1. Water Conservation: Reduces pressure on natural water sources and aquifers.
2. Energy Savings: Decreases the energy required for water treatment and distribution.
3. Stormwater Management: Helps prevent urban flooding and reduces pollutant runoff into waterways.
4. Groundwater Recharge: Can help replenish groundwater when used with infiltration systems.
5. Reduced Carbon Footprint: Lowers the overall carbon emissions associated with water supply.
6. Ecosystem Protection: Helps maintain environmental flows in rivers and streams.

Frequently Asked Questions

Rainwater harvesting is a powerful tool in our quest for sustainable water management. By implementing these systems, we can reduce our environmental impact, save money, and increase our resilience to water scarcity. Whether you’re considering a small-scale system for your home or a larger installation for agricultural or commercial use, the principles and benefits of rainwater harvesting remain the same.

As we face increasing challenges related to water resources, embracing practices like rainwater harvesting becomes not just beneficial, but essential. We encourage you to explore how rainwater harvesting can work for your specific needs and situation.

Remember, every drop counts in our efforts to create a more sustainable future. Start your rainwater harvesting journey today and be part of the solution to global water challenges.
