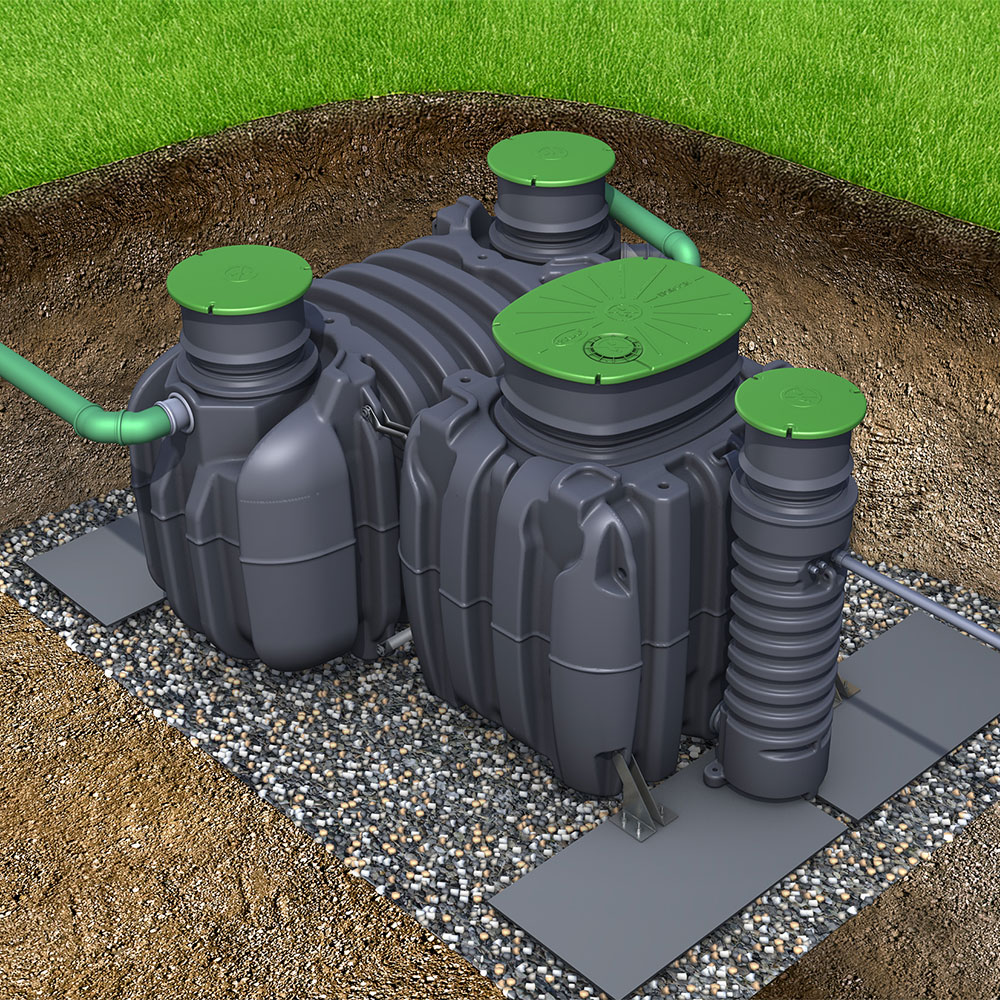

easyRock Non-Electric Sewage Treatment Plant

A non-electric, low-maintenance sewage treatment plant for homes without mains drainage.

Zero electricity costs – advanced biological treatment with no power connection required.
Extra-flat design – reduced burial depth lowers excavation and installation costs.
No moving parts – zero risk of mechanical breakdown, no wearing components to replace.
Flexible installation – Pack or Line configuration to suit your site constraints.

Groundwater resistant – suitable for installation in high water table conditions.

Completely silent – no compressor, no noise – your garden stays peaceful.

The easyRock is a non-electric sewage treatment plant that uses GRAFRock, a highly efficient mineral carrier material, to treat domestic wastewater biologically and naturally – without electricity, without noise, and without moving parts. Designed with an extra-flat profile for shallow installation, it keeps excavation costs down and adapts to difficult sites with its flexible Pack or Line layout. Ideal for self-builders, rural homeowners, and anyone looking for a genuinely low-maintenance off-mains drainage solution.

Get Your Sewage Treatment Plant Commissioned by GRAF UK at No Extra Cost

Innovative Design Features

No Electricity Required

The easyRock operates entirely without a power connection. Biological treatment happens naturally through the GRAFRock filter media, eliminating electricity costs and the risk of system failure during power outages.

Extra-Flat Design

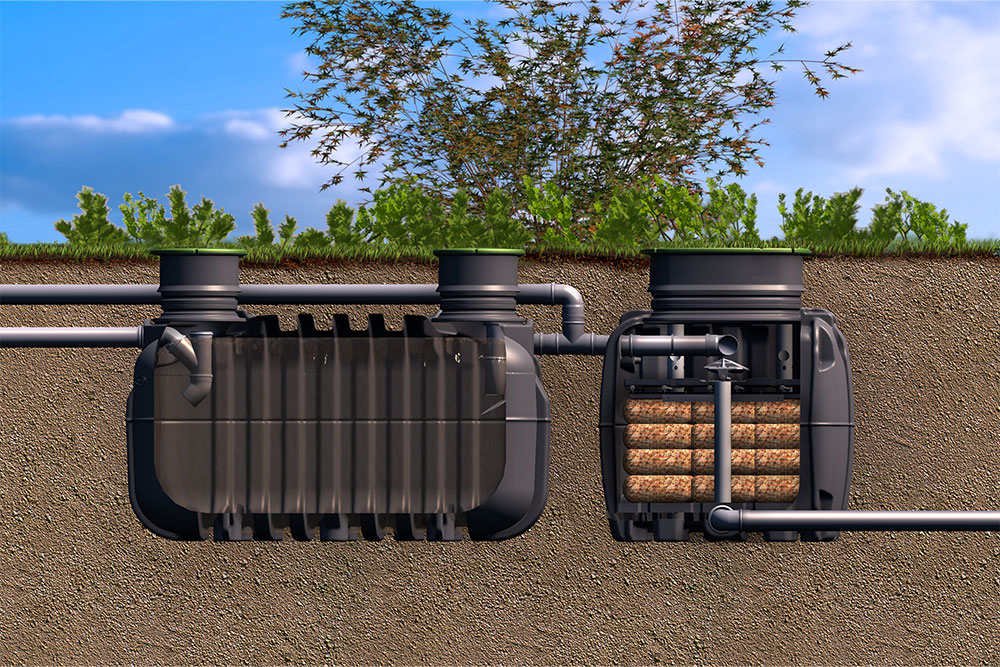

Inlet invert 380mm-510mm, with extension sets available for a maximum inlet invert level of 1040mm. The easyRock’s shallow profile significantly reduces the depth of excavation needed, cutting installation time and cost – particularly on sites with difficult ground conditions.

Pack or Line Installation

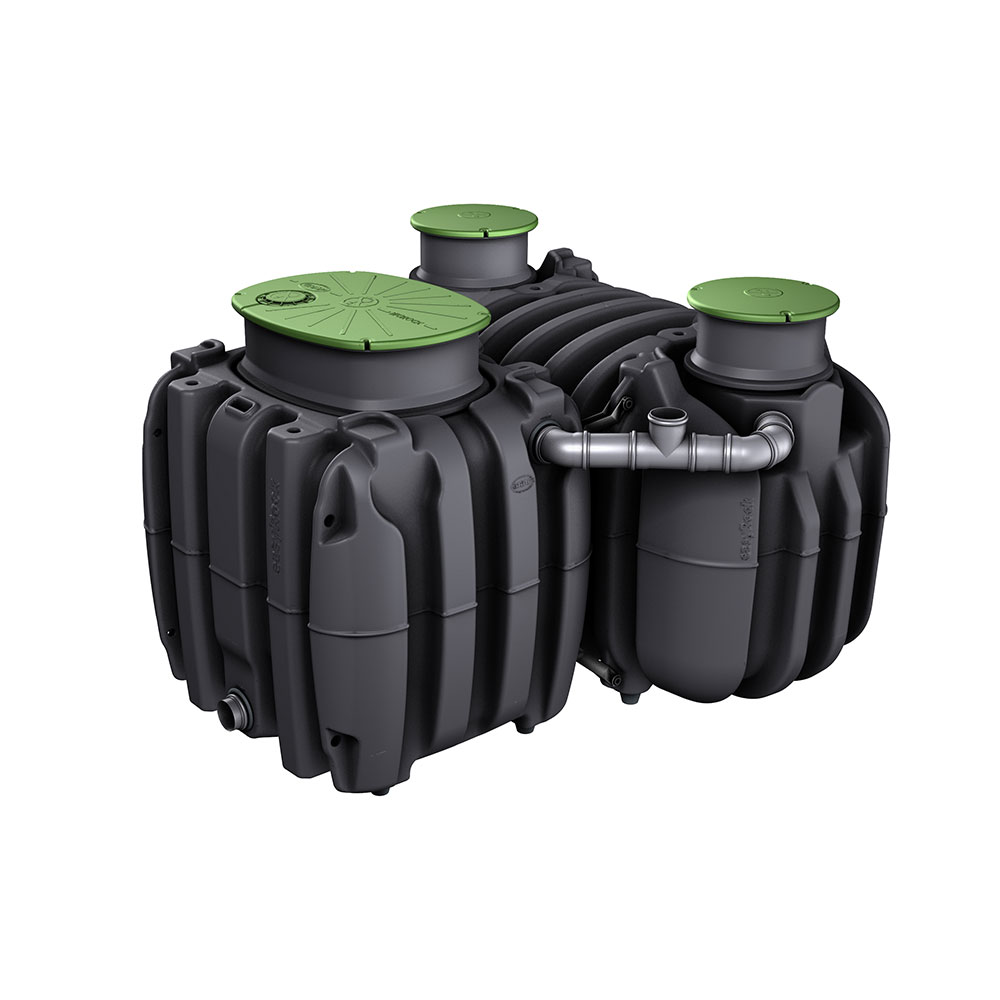

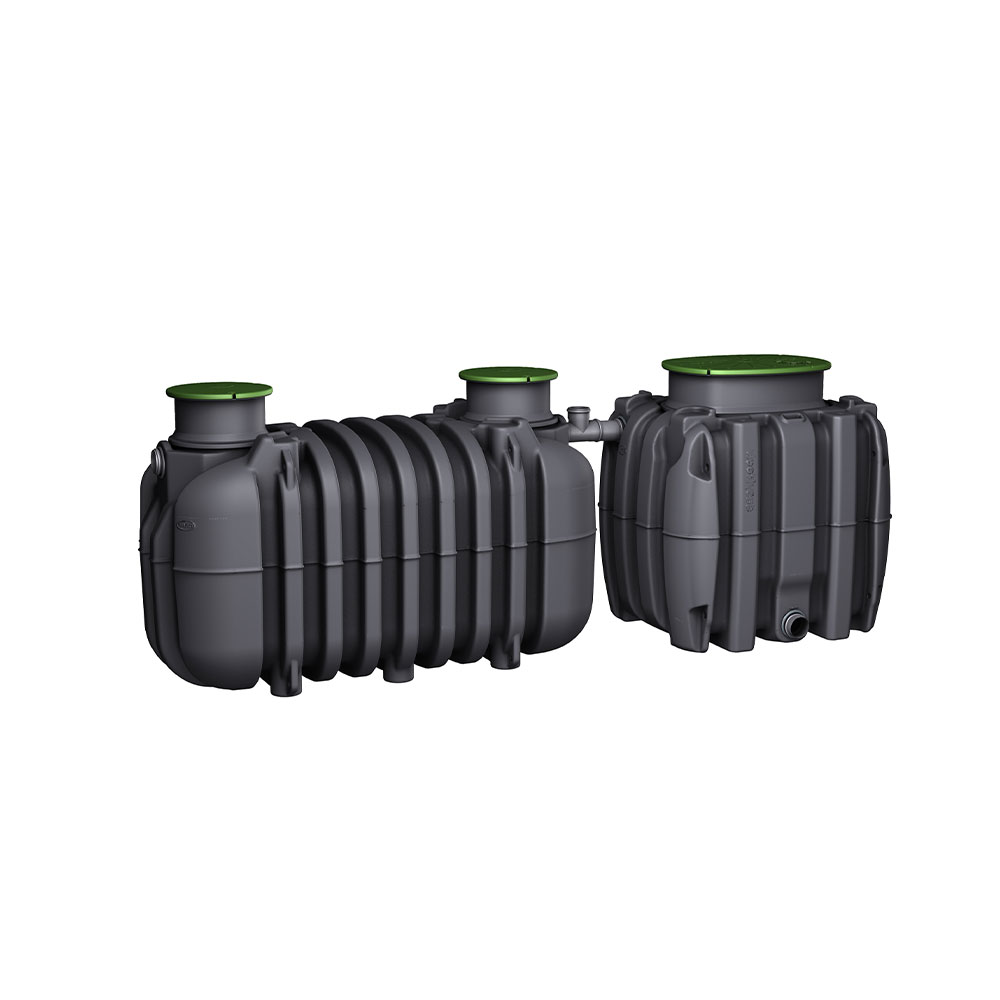

The easyRock can be installed in Pack (side-by-side) or Line (in-series) configuration, with no additional accessories required to switch between the two. This makes it easy to adapt the system to your site layout on the day of installation.

GRAFRock Filter Media

GRAFRock is a highly efficient mineral carrier material purpose-designed for biological wastewater treatment. It provides a large surface area for beneficial bacteria to colonise and break down pollutants naturally, delivering reliable treatment performance year after year.

Groundwater Resistant

Engineered with an innovative anchoring system, the easyRock can be installed in areas with high groundwater levels – resistant up to the bottom edge of the inlet pipe. Suitable for all soil types.

Optional Raised Outlet

Where site conditions require it, an optional lift pump station provides a raised outlet for treated water discharge. The pump station includes a factory-mounted pump and level alarm for added peace of mind.

Sizing

Population equivalent (PE)	Max. daily flow [l/d]	Max. organic load [kg BOD5/d]	Total volume [l]	Length [mm]	Width [mm]	Height [mm]	Weight [kg]	Product code
4	600	0.24	1,800	2,280	2,275	1,420	280	169300
5	750	0.30	2,250	2,280	2,500	1,420	300	169301
6	900	0.36	2,700	2,280	2,725	1,420	330	169302
8	1,200	0.48	3,600	2,280	3,300	1,420	380	169303

How it works

1. Primary Settlement

Wastewater from the property enters the primary clarifier, where heavier solids settle to the bottom as sludge and lighter materials rise to the surface. This initial separation removes the bulk of solid waste before the water moves on to the next stage.

2. Pre-Filtration

The settled wastewater passes through an integrated pre-filter, which captures remaining suspended particles and prevents them from entering the biological treatment stage. This protects the GRAFRock media and ensures consistent treatment performance.

3. Biological Treatment

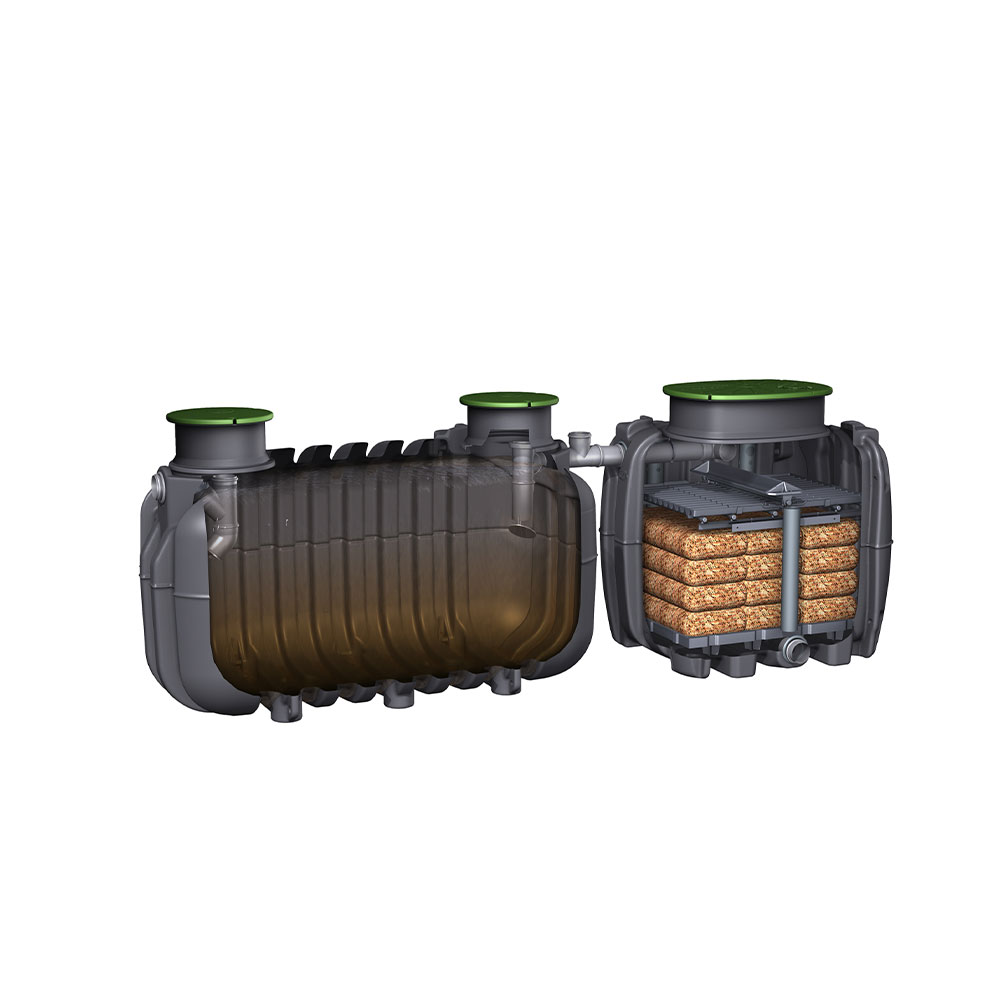

The pre-filtered water is distributed evenly across the GRAFRock mineral filter media in the treatment unit. Naturally occurring bacteria colonise the large surface area of the GRAFRock, breaking down organic pollutants biologically without the need for electricity or mechanical aeration. The treated water is then discharged via a gravity outlet or, where required, through an optional lift pump station.

Treatment performance

Biological Oxygen Demand (BOD)	Chemical Oxygen Demand (COD)	Suspended Solids (SS)	Ammonia (NH₄-N)	Phosphate (Ptot)	Nitrate (Ntot)
Inlet: 307 mg/l \| Outlet: 4 mg/l \| Removal: 99%	Inlet: 612 mg/l \| Outlet: 33 mg/l \| Removal: 95%	Inlet: 218 mg/l \| Outlet: 5 mg/l \| Removal: 98%	Inlet: 64 mg/l \| Outlet: 0.22 mg/l \| Removal: 99.7%	Not included in PIA test results.	Not included in PIA test results.

Tested on easyRock 5 PE (as per EN 12566-3). PIA Test Reference: SR66 (Certificate No. 2604)

Why choose the easyRock Non-Electric Sewage Treatment Plant?

Truly Non-Electric

Unlike most sewage treatment plants on the market, the easyRock requires no electricity whatsoever. No compressor, no control panel, no wiring – just reliable, natural biological treatment. That means zero energy costs, zero risk of power-related failures, and a system that keeps working even during outages.

Lower Installation Costs

The easyRock’s extra-flat design means a shallower excavation, less spoil to remove, and a faster installation. Combined with its lightweight construction and flexible Pack or Line layout, it’s one of the simplest sewage treatment plants to get into the ground – saving time and money from day one.

Minimal Ongoing Maintenance

With no mechanical or electrical components inside the tank, there are no wearing parts to replace and no complex servicing routines. The easyRock keeps maintenance costs low and gives you peace of mind that the system will perform reliably for years to come.
