Everything You Need to Know About Attenuation Crates

Managing stormwater effectively has become a critical concern in urban and rural developments alike. With the rise of extreme weather events and the need for sustainable drainage systems, stormwater attenuation has emerged as a crucial solution to control runoff, reduce flooding, and protect water resources. One of the most effective tools in stormwater management is stormwater attenuation crates.

In this comprehensive guide, we’ll delve into everything you need to know about stormwater attenuation crates, from what they are to how they work, and why they are a vital part of modern drainage systems. Whether you’re a civil engineer, a property developer, or a contractor, this article will give you an in-depth understanding of stormwater attenuation crates and their applications.

What Are Stormwater Attenuation Crates?

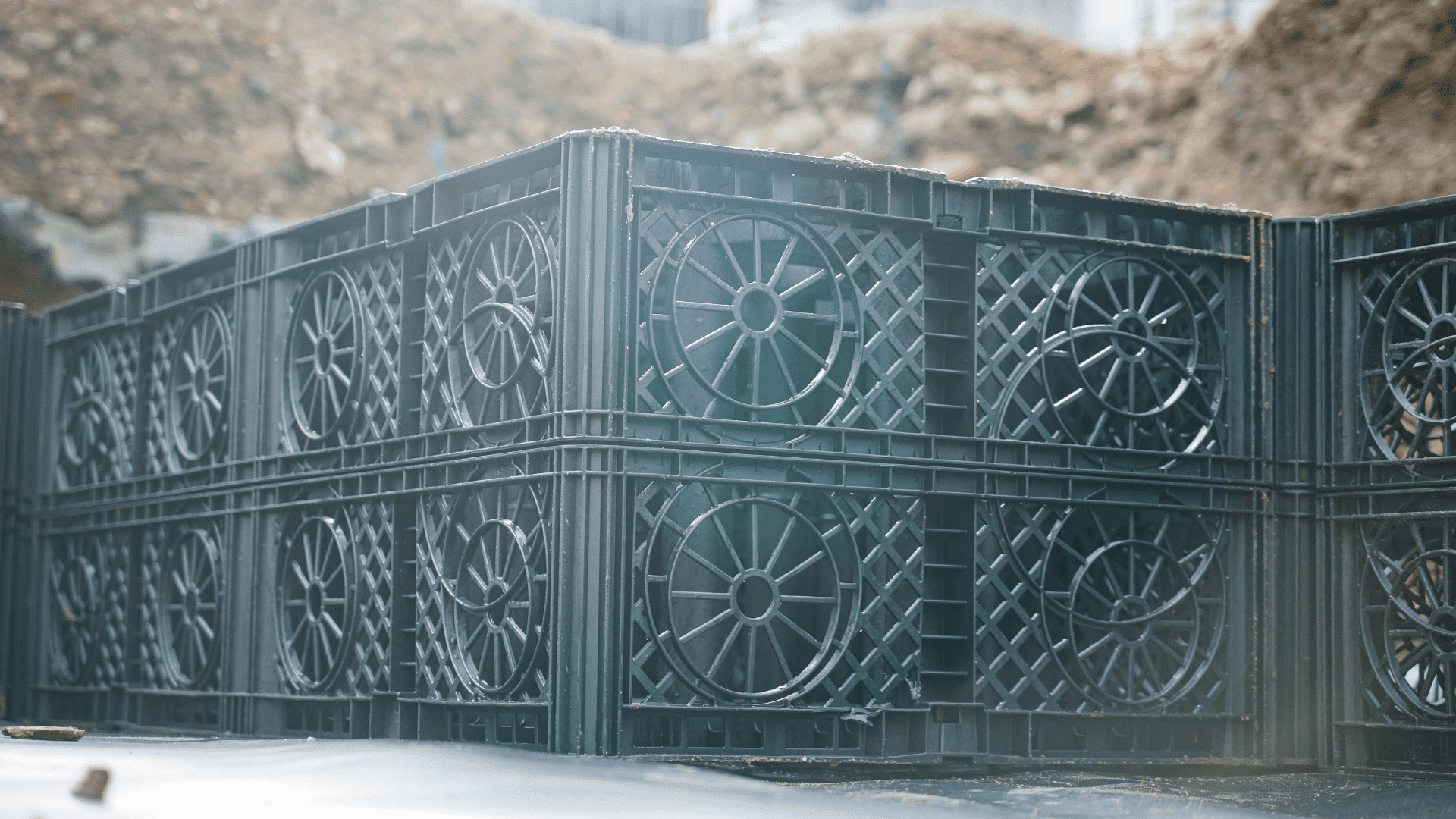

Stormwater attenuation crates are modular plastic units designed to manage excess rainwater by temporarily storing it underground and releasing it slowly into the surrounding soil or drainage system. These crates form an essential part of Sustainable Drainage Systems (SuDS), which aim to mimic natural water processes by preventing rapid runoff into sewers and watercourses.

Why Are Stormwater Attenuation Crates Important?

As cities expand and more land is covered by impermeable surfaces like roads and buildings, natural water absorption decreases. This can result in flooding, erosion, and strain on sewer systems. Stormwater attenuation crates are a key solution to these problems.

Key Benefits:

• Flood Prevention: By temporarily holding stormwater, they reduce the risk of flash floods.
• Sustainable Drainage: They promote groundwater recharge and help maintain natural water cycles.
• Environmental Protection: Reduced surface runoff leads to lower contamination levels in natural water bodies.
• Cost-Effectiveness: They can prevent the need for larger, more expensive stormwater management infrastructures.

How Do Stormwater They Work?

The core function of stormwater attenuation crates is to intercept, store, and release rainwater in a controlled manner.

The Process:

1. Collection: During heavy rainfall, water flows into the attenuation system via drainage inlets.
2. Storage: The crates hold the water temporarily, preventing immediate release into the drainage systems or natural waterways.
3. Controlled Release: The stored water is gradually released into the storm drain over time, reducing the load on the drainage system.

This delayed release reduces the peak flow rate of stormwater, helping to prevent downstream flooding.

Applications of Stormwater Attenuation Crates

Stormwater attenuation crates have wide-ranging applications in both residential and commercial developments:

Common Uses:

• Residential Housing Developments: They manage rainwater runoff from roofs, gardens, and driveways.
• Car Parks and Commercial Spaces: Used under car parks to manage surface water runoff.
• Public Spaces: Installed under parks, roads, and walkways to mitigate flooding risks.

Their flexibility makes them ideal for various site conditions, from urban environments to rural developments.

Installation and Maintenance

Installation:

Attenuation crates are typically installed underground in excavated areas, which are then backfilled after installation. The crates are then wrapped in an impermeable geomembrane to ensure the tank is watertight. The installation process should follow a precise design based on hydrological assessments of the site to ensure the system can handle the expected water load.

Maintenance:

Maintenance of these systems is relatively minimal, though periodic inspections are recommended. Clearing any blockages in the inlet and outlet pipes and ensuring that the geomembrane remains intact are essential to the system’s longevity.

Benefits of Using Stormwater Attenuation Crates

The use of stormwater attenuation crates offers a range of advantages, making them a popular choice for stormwater management.

Key Benefits:

• Versatility: They can be installed under almost any surface, including roads, car parks, and green spaces.
• Scalability: Their modular design means they can be adapted to handle various volumes of water, from small domestic systems to large commercial projects.
• Environmental Friendliness: They help reduce surface runoff and minimise flood risks, promoting sustainable development.
• Cost-Effective: Compared to traditional stormwater management systems, they offer a more affordable and flexible solution.

Regulations and Compliance for Attenuation Systems

Depending on your location, there are specific regulations governing the use of stormwater attenuation systems. These include:

SuDS Guidelines: In many regions in the UK, attenuation systems must adhere to Sustainable Drainage Systems guidelines to ensure sustainability and effectiveness.

Planning Permissions: Some developments require attenuation systems to comply with local planning regulations.

Water Quality Standards: Systems must ensure that they do not contribute to pollution of groundwater or nearby watercourses.

Stormwater attenuation crates play a vital role in modern drainage systems by managing stormwater runoff in a sustainable and effective manner. Their versatility, cost-effectiveness, and environmental benefits make them an essential component of Sustainable Drainage Systems (SuDS). Whether for residential, commercial, or public spaces, stormwater attenuation crates help reduce the risk of flooding, promote groundwater recharge, and protect our water resources.

Looking to install stormwater attenuation crates in your next project? Explore our range of innovative solutions designed to meet your stormwater management needs. Check out our other resources on Sustainable Drainage Systems (SuDS) for further reading and expert advice.

Frequently Asked Questions
